Comacchio machines of the CH series are multipurpose units, designed to ensure quick rig up, high performance, safety and reliability. Comacchio piling rigs are available in CPD (Cylinder Pull Down), WPD (Winch Pull Down) versions or in 4th line pull set-up for CFA applications, depending on the customer's needs and the required drilling methodologies, which may include:
- CBP (Cased Bored Piles) bored piles with casing installation by rotary drive or optionally by hydraulic casing oscillator;
- BP (Bored Piles) uncased bored piles excavated by dry method or stabilized by fluid overpressure;
- CFA (Continuous Flight Auger) piles that are cast-in-place by the use of a continuous hollow auger stem;
- DP (Displacement Piles) piles installed without soil removal by advancing a special tool into the ground that causes the soil to be displaced radially and vertically;
- SM (Soil Mixing) piles constructed by mixing and partly replacing the existing soils with grout using a soil mixing tool;
- LDTH (Large DTH) piles installed with DTH method using bits of a larger diameter than standard bits;
- MP (Micropiles) installed using conventional air-flush rotary drilling.
The piling rigs of the CH range are designed to improve energy efficiency and environmental sustainability. The combination of fuel-efficient engines and advanced hydraulic system considerably reduces emissions and fuel consumption, also reducing noise levels on site. All Comacchio CH piling rigs are designed to offer the highest level of safety in line with the strictest European regulations. The cab provides maximum operator comfort to ensure smooth and easy operation.

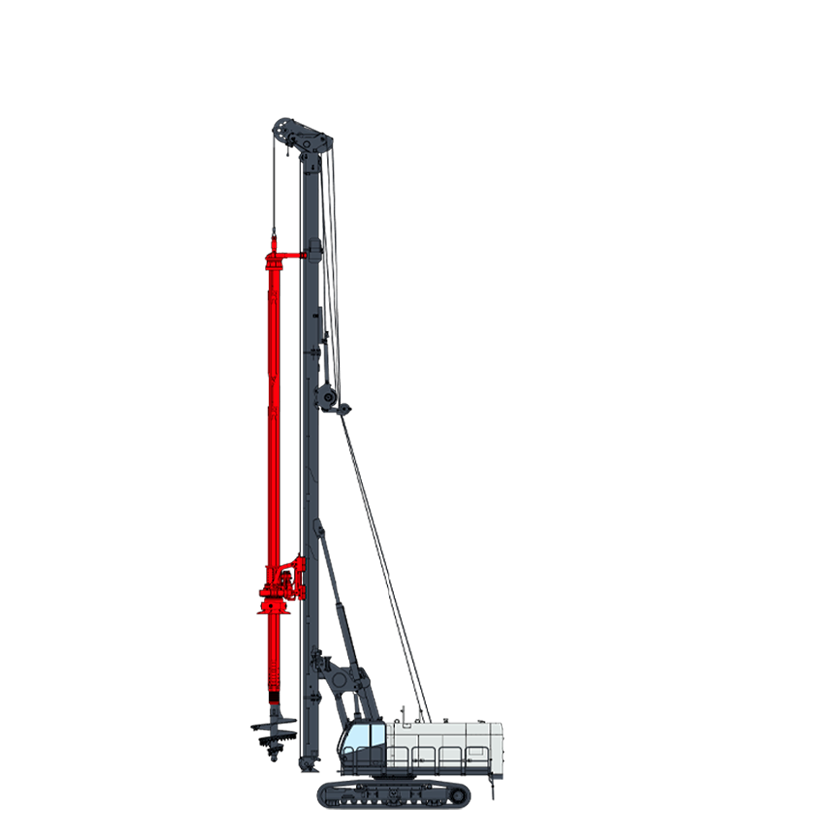

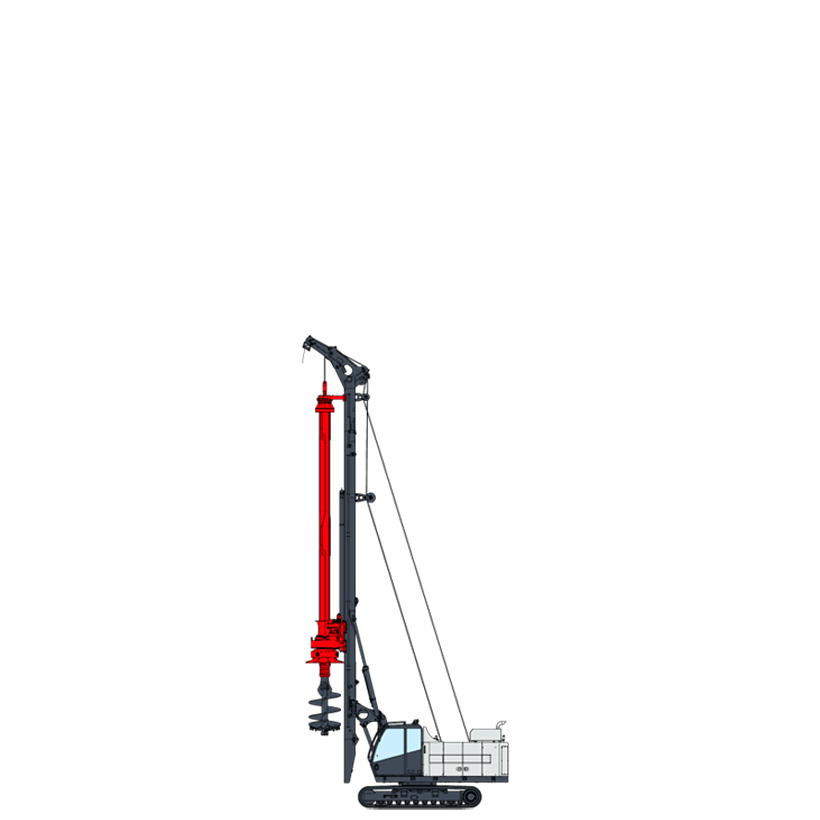

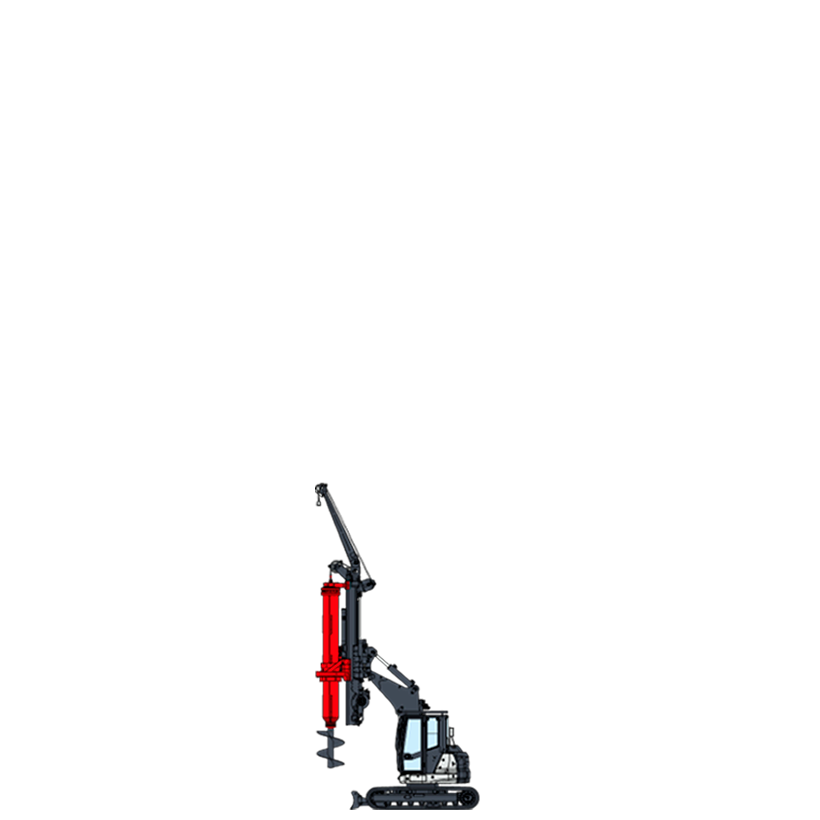

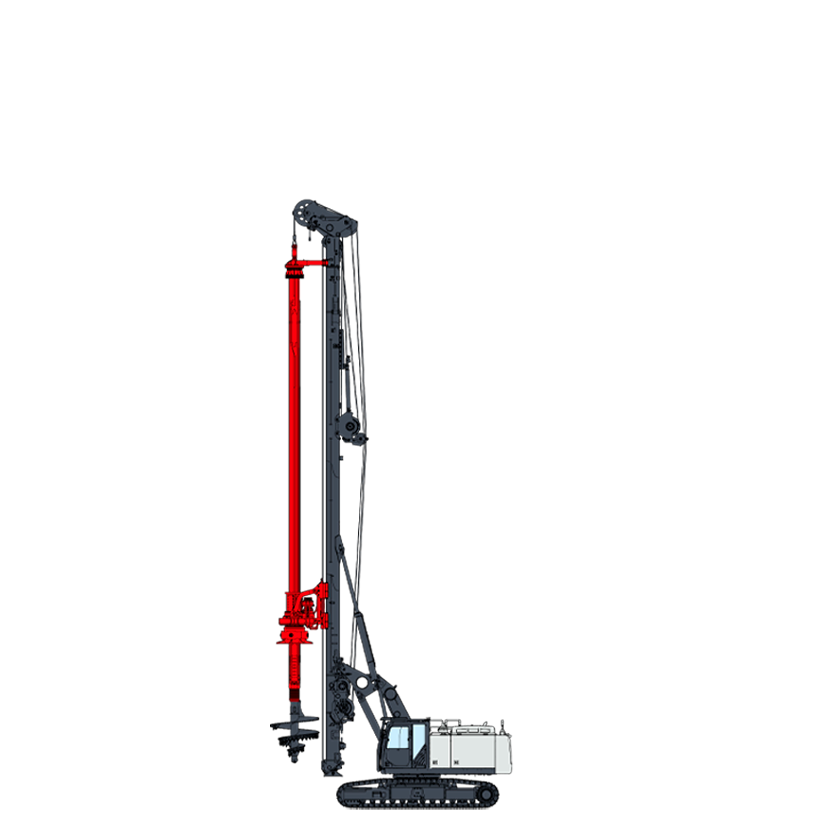

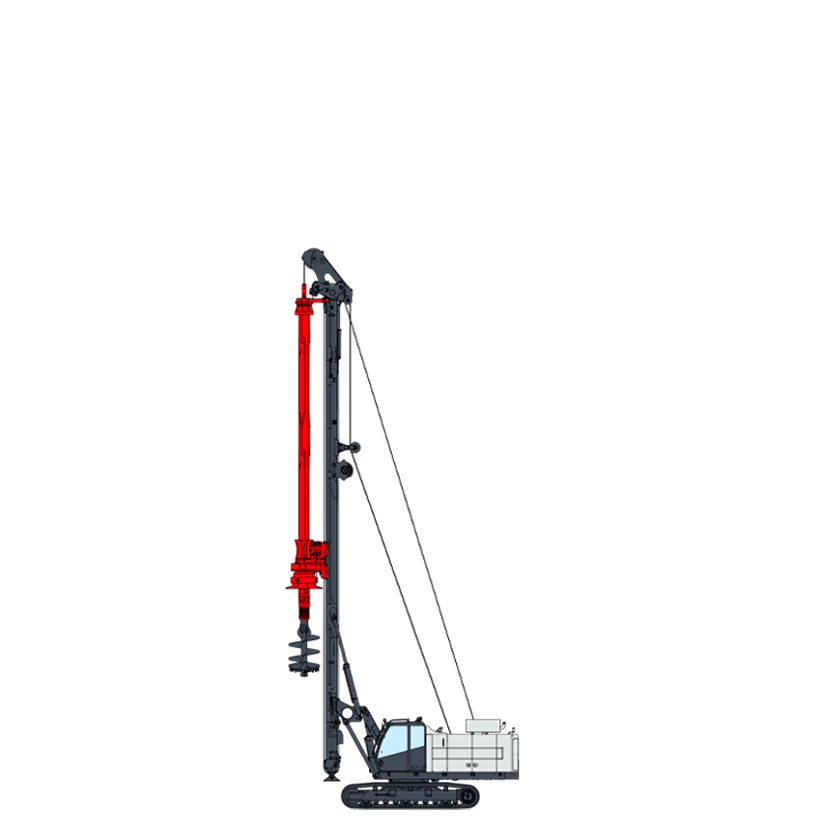

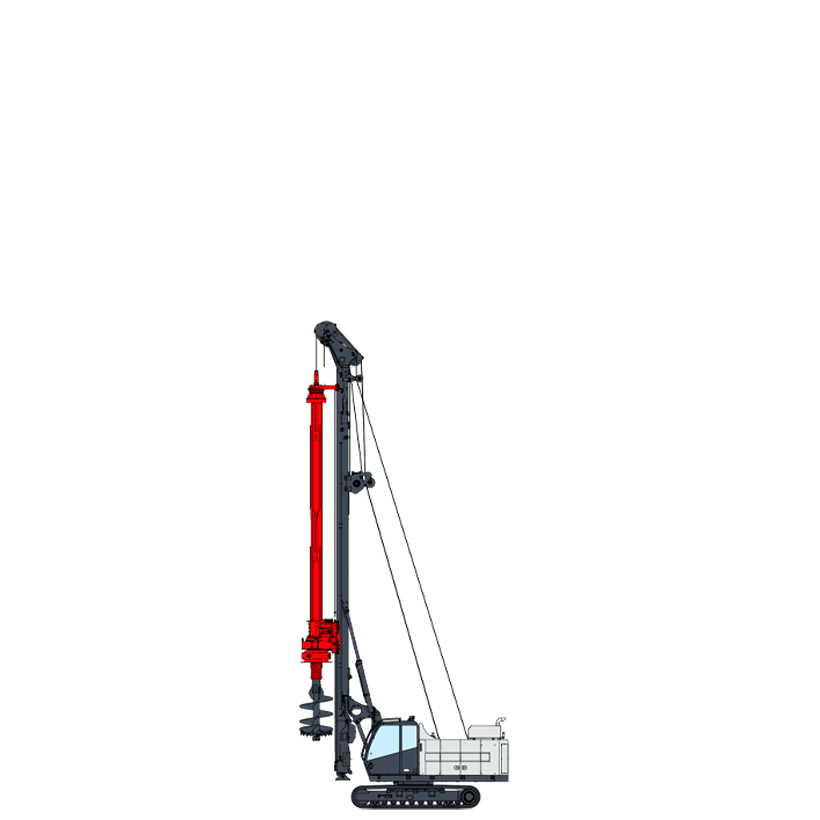

| Max pile Ø CPD | 1300 - 1500 mm |
| Max pile depth with friction kelly CPD | 48.5 m |
| Max pile depth with locking kelly CPD | 39 m |
| Operating weight | 29400 kg |
| Max pile Ø CPD | 4'3''/4'11'' |
| Max pile depth with friction kelly CPD | 159' 1' |
| Max pile depth with locking kelly CPD | 127' 11" |
| Operating weight | 64,800 lbs |
| Max pile Ø WPD | 1180 - 1500 mm |
| Max pile depth with friction kelly WPD | 47.5 m |
| Max pile depth with locking kelly WPD | 38.2 m |
| Operating weight | 31600 kg |
| Max pile Ø WPD | 3'10''/4'11'' |
| Max pile depth with friction kelly WPD | 155' 10' |
| Max pile depth with locking kelly WPD | 125' 4" |
| Operating weight | 70,000 lbs |
| Max pile Ø CPD | 1500 - 2000 mm |
| Max pile Ø WPD | 1300 - 2000 mm |
| Max pile depth with friction kelly CPD/WPD | 56.6 / 62.9 m |
| Max pile depth with locking kelly CPD/WPD | 45.1 / 50.4 m |
| Operating weight | 43100 - 44800 kg |
| Max pile Ø CPD | 4' 11'' - 6' 7" |
| Max pile Ø WPD | 4' 3'' - 6' 7" |
| Max pile depth with friction kelly CPD/WPD | 185' 8" / 206' 4" |
| Max pile depth with locking kelly CPD/WPD | 148' / 165' 4" |
| Operating weight | 95,000 - 98,800 lbs |
| Max pile Ø CPD | 2200 - 2500 mm |
| Max pile Ø WPD | 2000 - 2500 mm |
| Max pile depth with friction kelly CPD/WPD | 62.0 / 69.0 m |
| Max pile depth with locking kelly CPD/WPD | 50.5 / 56.5 m |
| Operating weight | 65000 - 67000 kg |
| Max pile Ø CPD | 7' 3'' - 8' 2" |
| Max pile Ø WPD | 6' 7'' - 8' 2" |
| Max pile depth with friction kelly CPD/WPD | 203' 5"/226' 5" |
| Max pile depth with locking kelly CPD/WPD | 165' 8"/185' 4" |
| Operating weight | 143,300 - 147,700 lbs |
| Max pile Ø CPD | 2700 - 3000 mm |
| Max pile Ø WPD | 2500 - 3000 mm |
| Max pile depth with friction kelly WPD | 90.0 m |
| Max pile depth with locking kelly WPD | 71.5 m |
| Operating weight | 89000 kg |
| Max pile Ø CPD | 8' 10'' - 9' 10" |
| Max pile Ø WPD | 8' 2'' - 9' 10" |
| Max pile depth with friction kelly WPD | 295' 4" |
| Max pile depth with locking kelly WPD | 234' 7" |
| Operating weight | 196,200 lbs |
