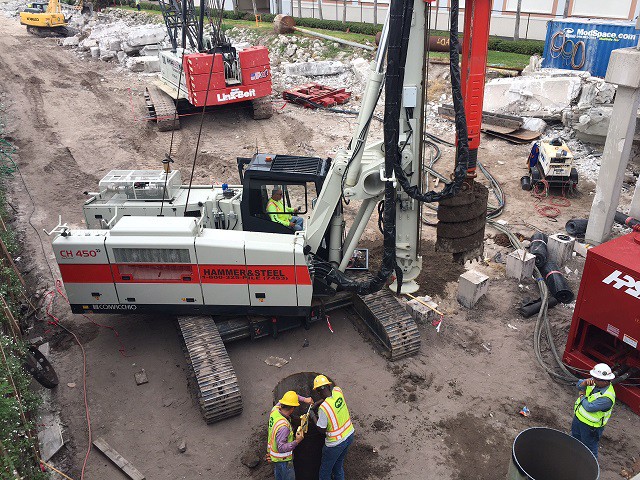

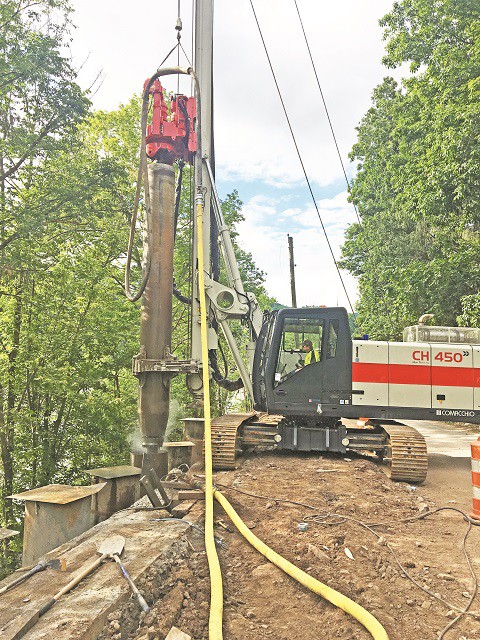

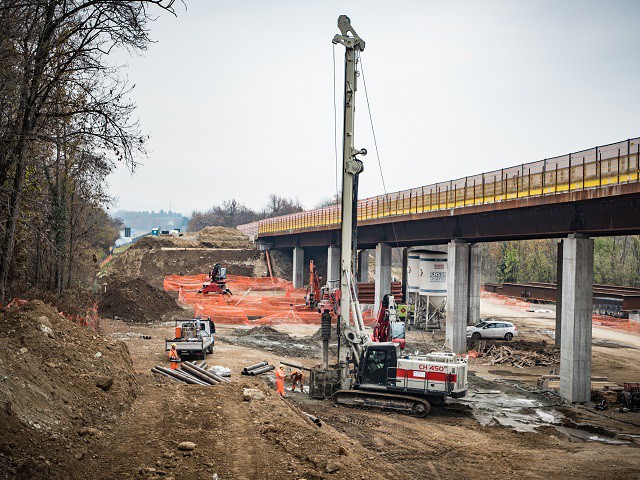

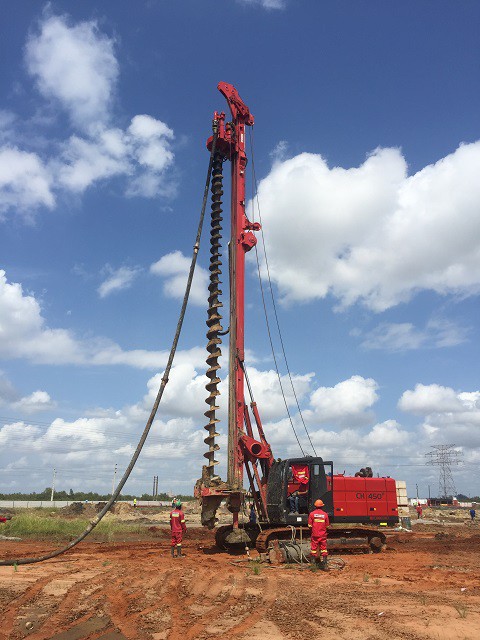

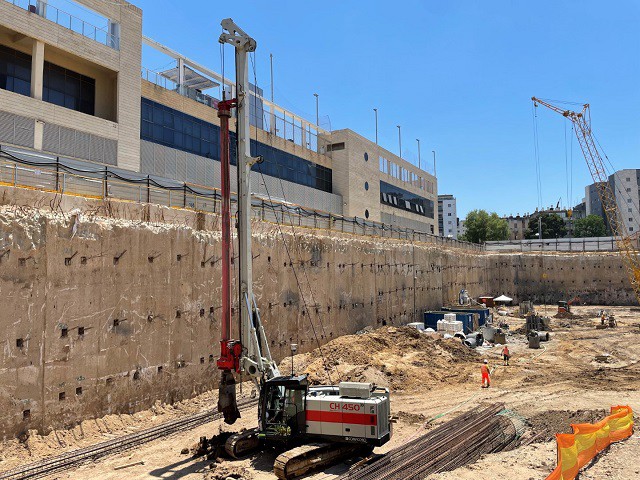

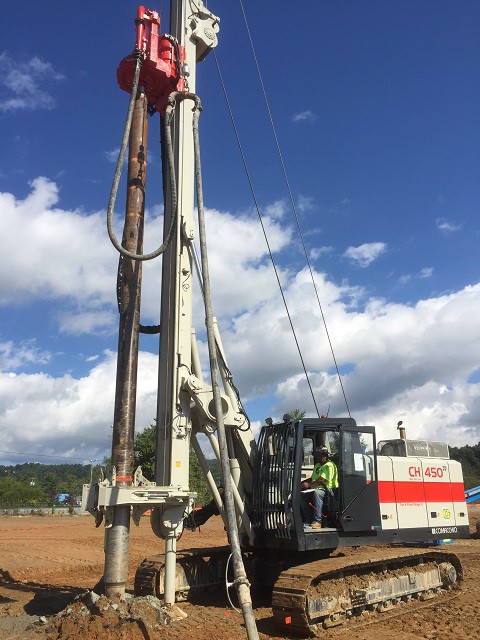

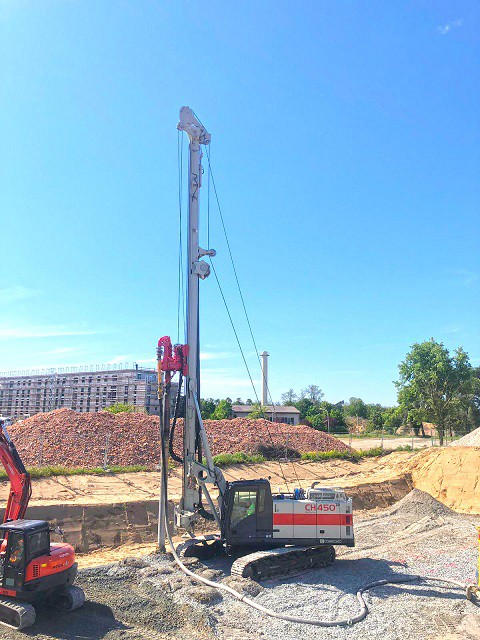

CH 450

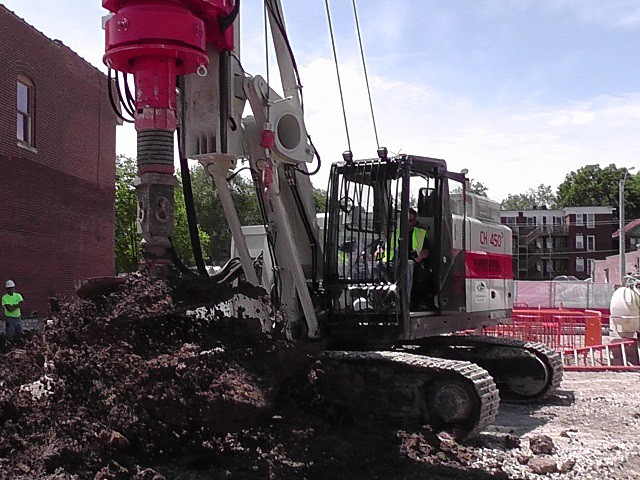

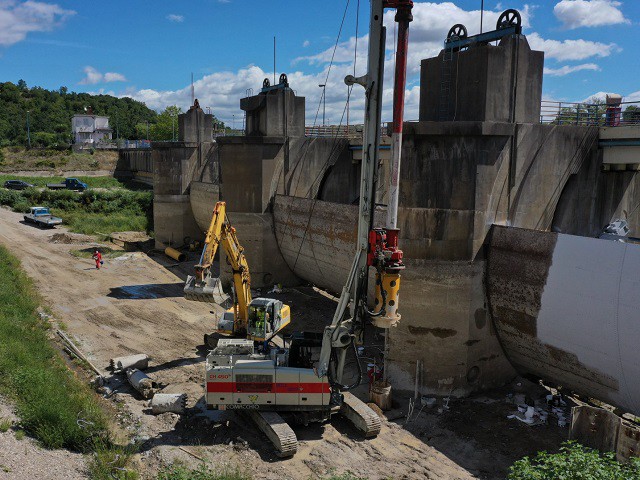

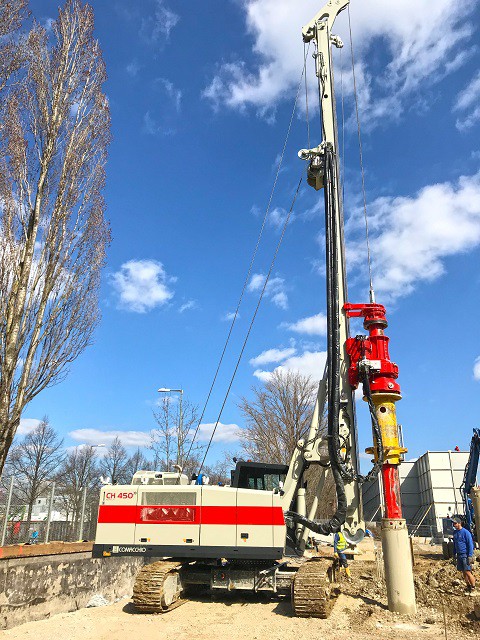

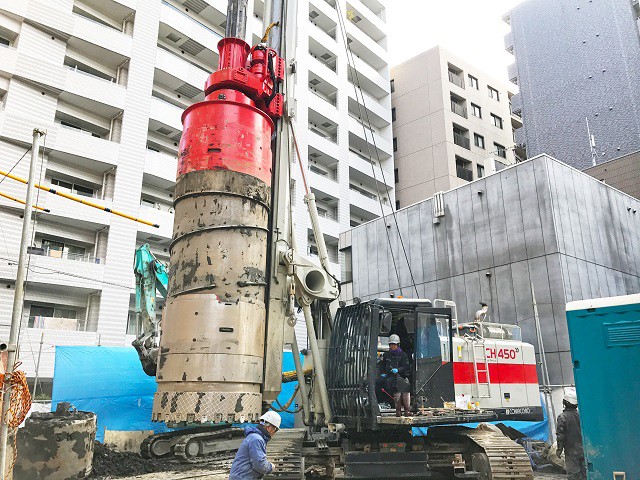

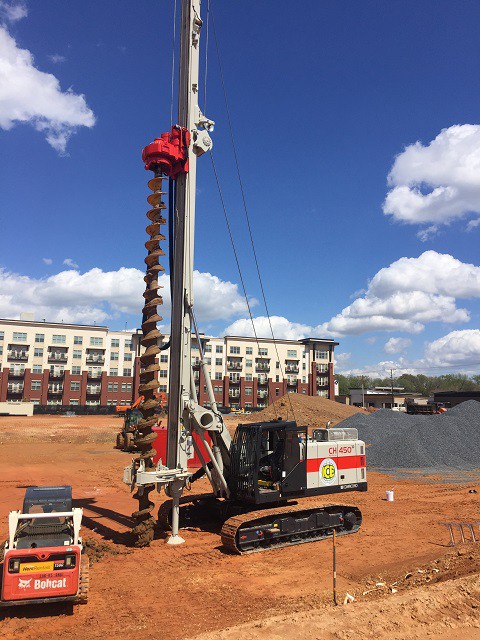

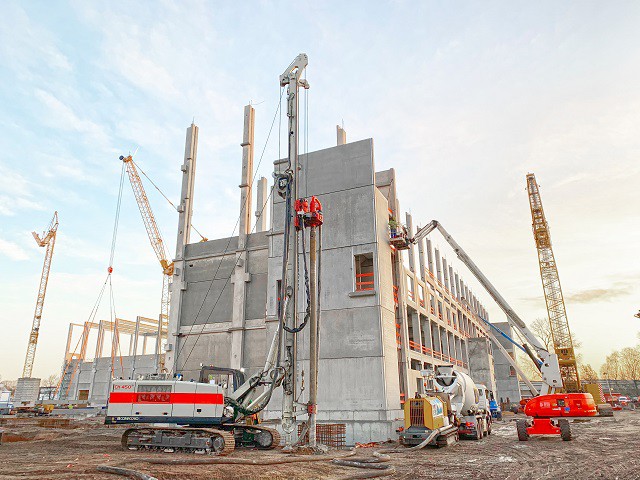

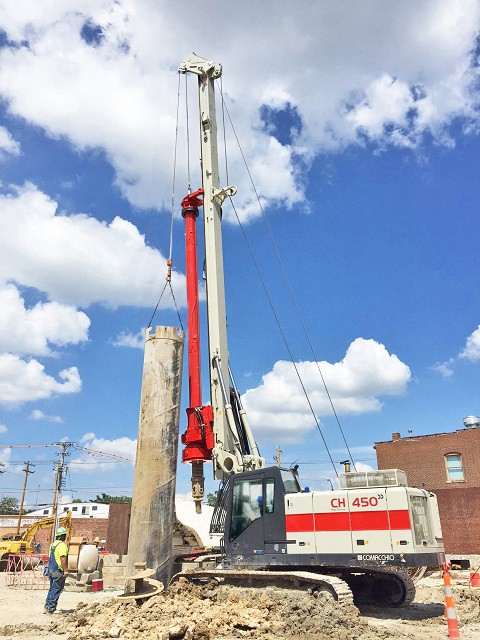

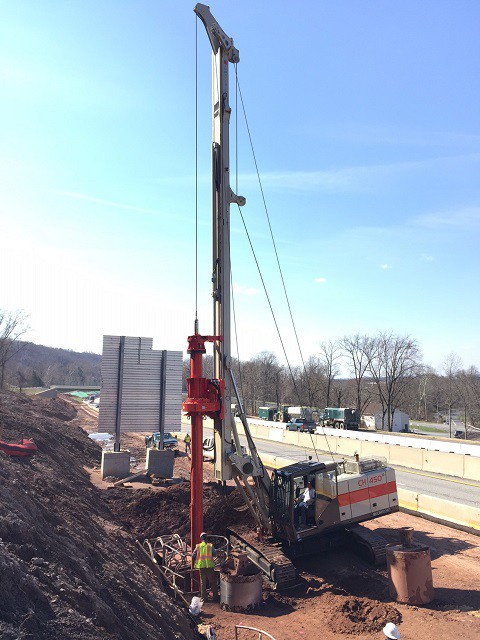

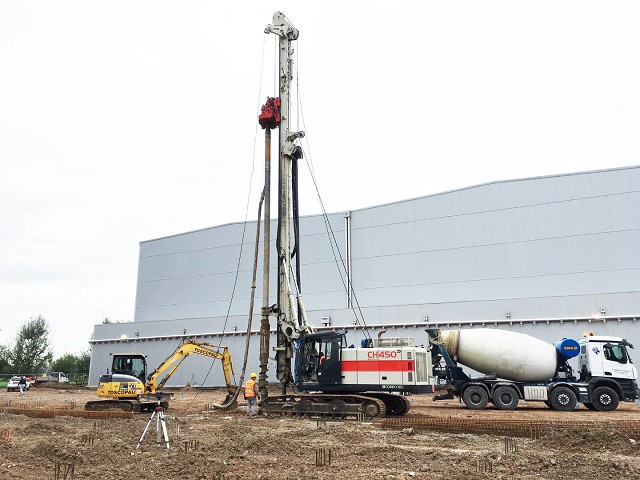

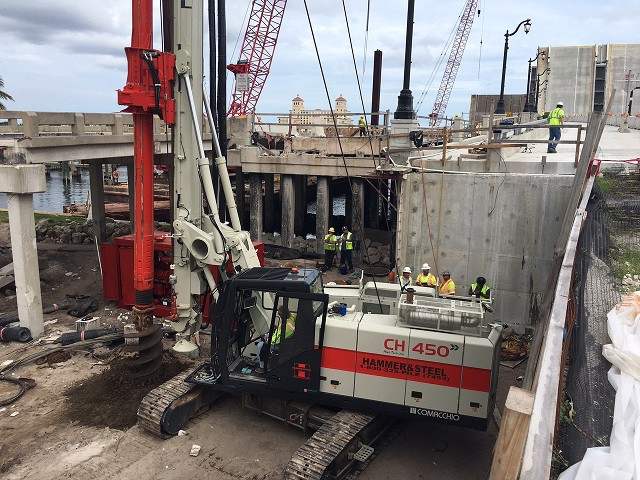

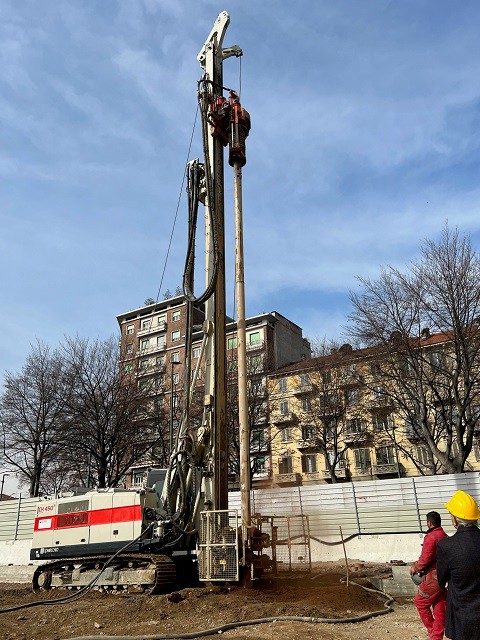

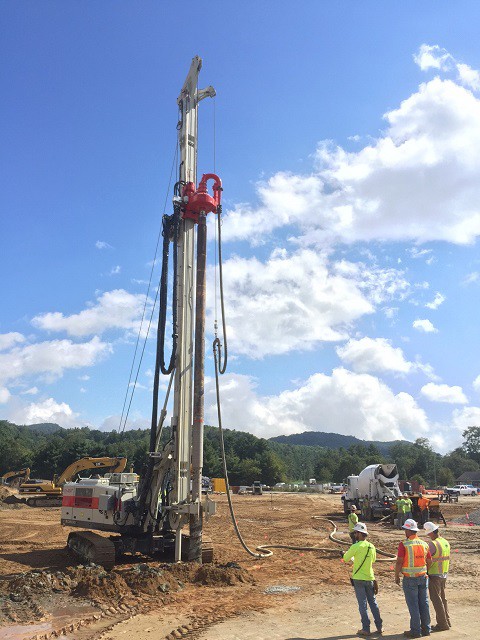

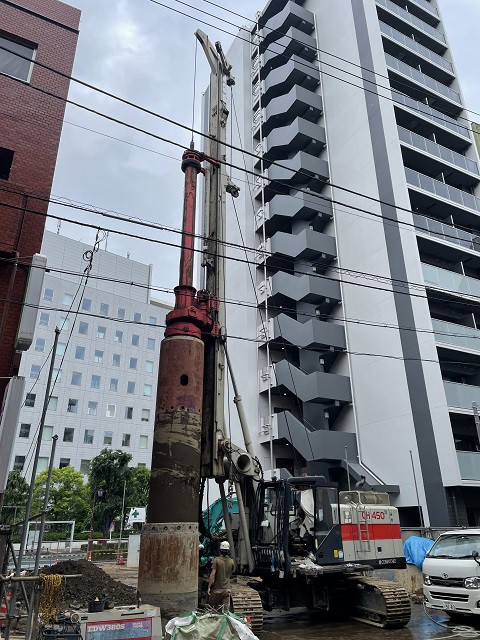

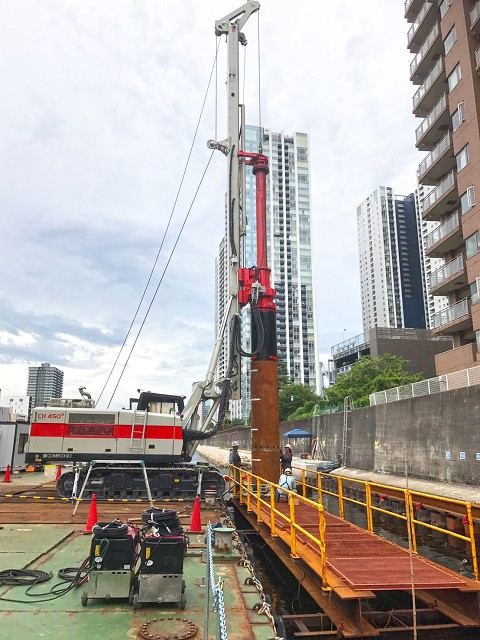

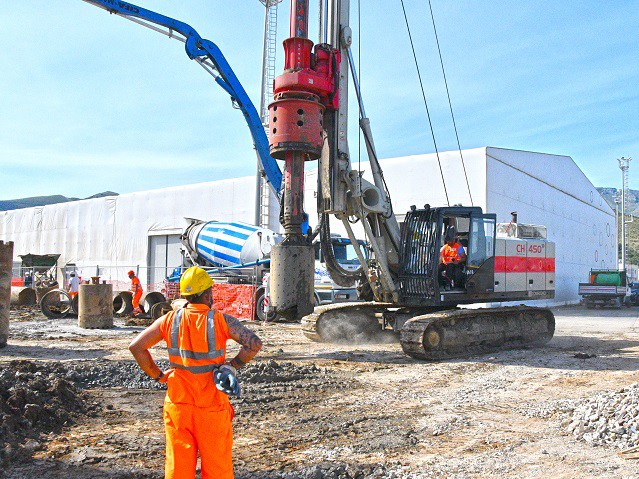

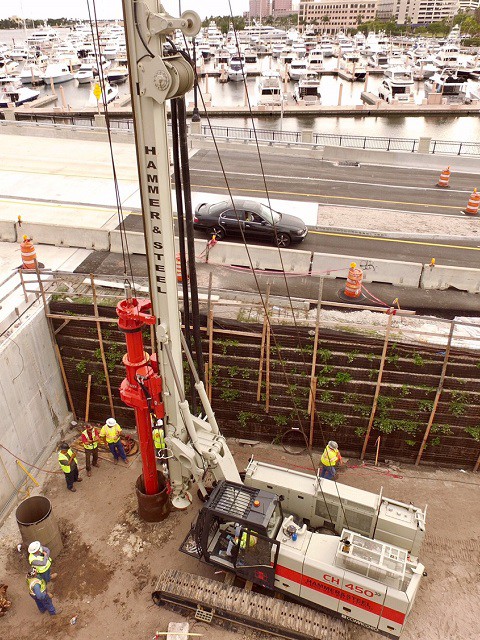

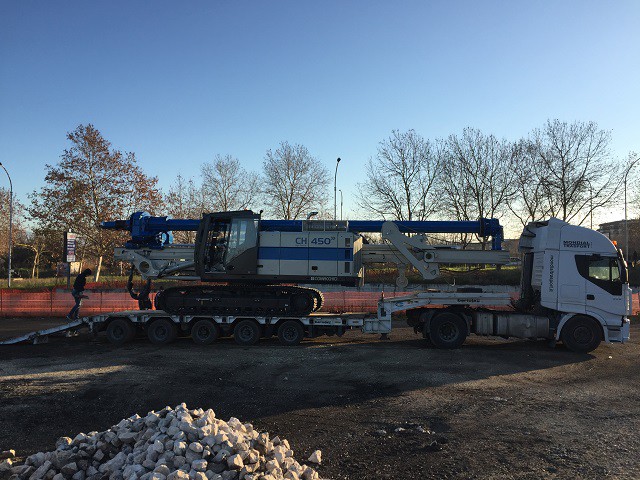

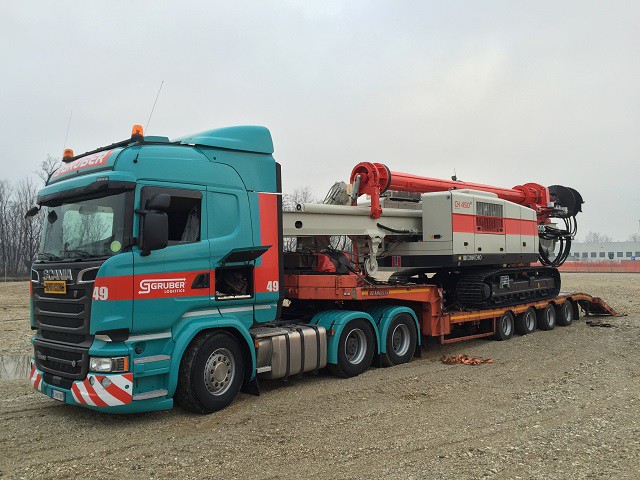

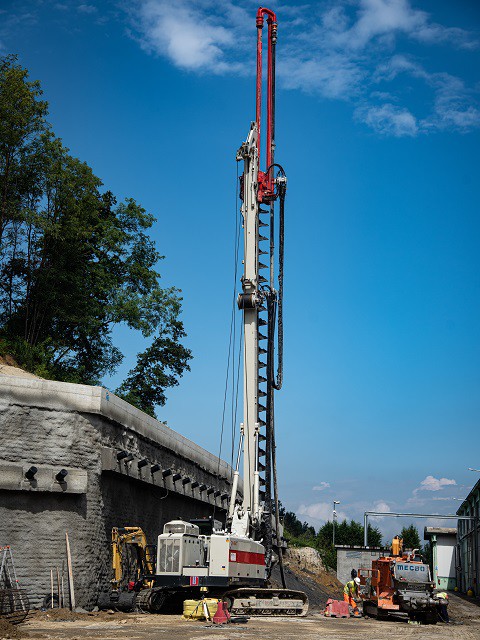

The CH 450 is the first Comacchio drilling rig for large diameter drilling. The CH 450 is the ideal solution for job sites that require fast operating times. The machine is totally self-erecting, and can be transported in one piece with the kelly mounted. Once in place, the machine is easily downloaded from the truck and set up without the need for crane service. Lifting of the mast takes a few minutes and can be performed in complete safety. The CH 450 is designed to cover a wide range of processes that include bored piles, continuous flight auger (CFA piles), micropiles, displacement piles and soil mixing. The machine can be supplied in the CPD (cylinder pulldown) and WPD (winch pulldown) versions and can be equipped with kelly bars with a maximum length of 13.0 to 13.5 m (CPD-WPD) and with different outer diameters, including HD (heavy duty) and XHD (extra heavy duty) bars.

TECH DATA

Diesel engine Cummins QSB6.7  (EU Stage IIIA/Stage V - US EPA Tier 3/Tier 4f)
Power rating 201 kW/ 2000 rpm 270 HP/2000 rpm
Max nominal torque 190 kNm 140,000 lbf*ft
Main Winch 160 kN 35,970 lbs
Transport weight CPD 43100 kg 95,000 lbs
Transport weight WPD 44800 kg 98,800 lbs

WPD (Winch Pull Down)
Max pull up force 240 kN 53,950 lbs

CPD (Cylinder Pull Down)
Max pull up force 226 kN 50,800 lbs

CFA T4 XL
Max pile diameter 1000 mm 3’ 3”
Max pile depth 18 + 6 = 24 m 59’ 1” + 19‘ 8" = 78’ 9”
