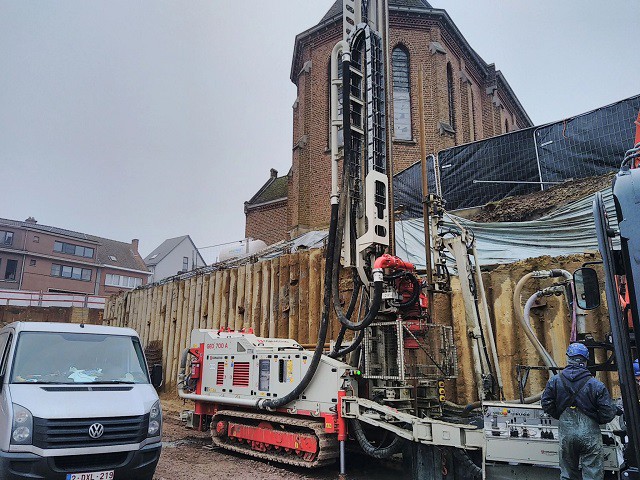

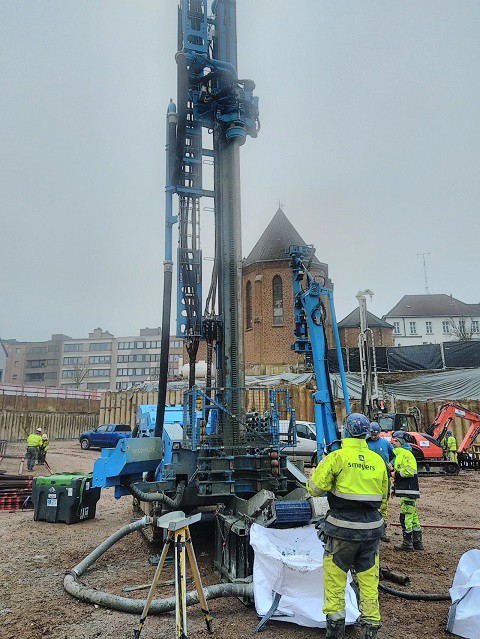

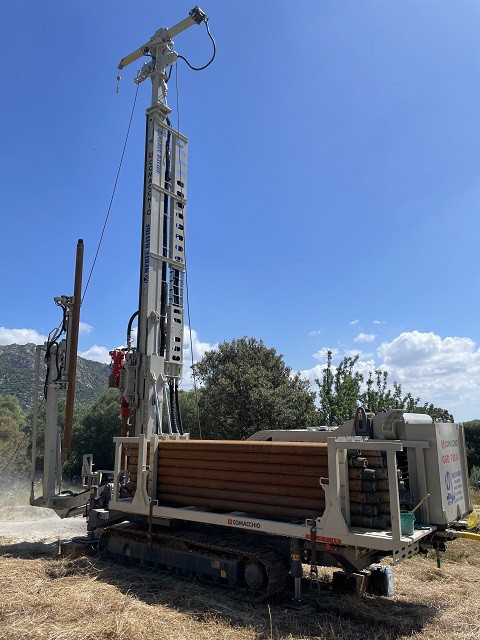

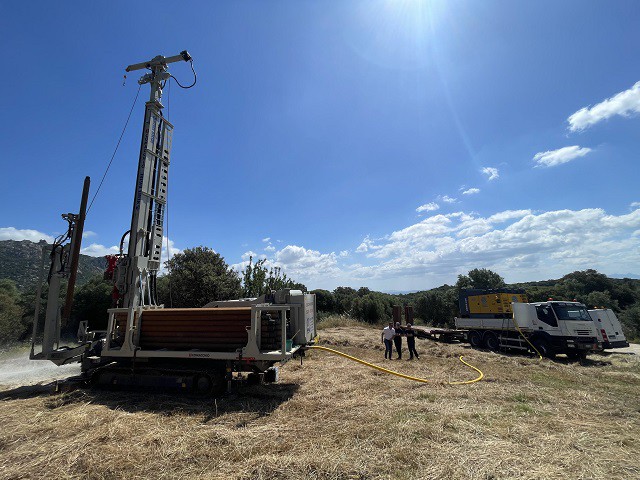

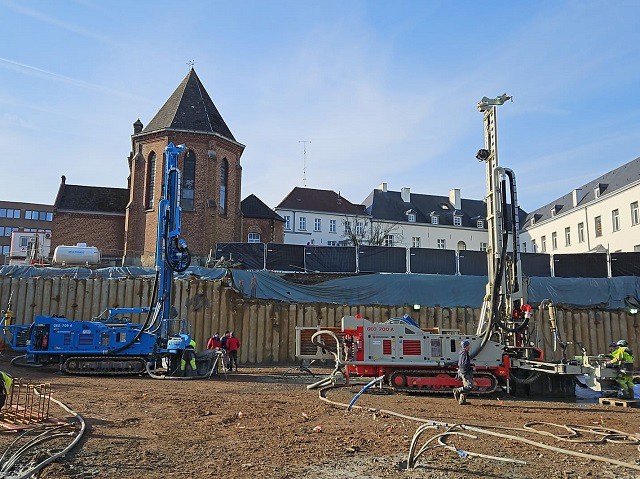

The GEO 700 A is a compact drilling rig designed for water well and geothermal drilling. It delivers up to 15 tons of retract force and supports both direct mud rotary and DTH (down-the-hole) drilling methods. The rig can be outfitted with a wide range of accessories that enhance drilling efficiency, streamline rod recovery, and support effective treatment of waste drilling fluids. The GEO 700 A represents a significant step forward in the automation of equipment handling, contributing to improved operator safety and overall site health. At the heart of the machine is an advanced automatic pipe handling system, featuring a rod rack and a side-mounted loader arm. This arm retrieves rods directly from the rack, which can accommodate up to 200 meters of total rod length. Additionally, the same arm can access an almost unlimited number of rods from an external trestle positioned beside the rig. Together, these features deliver increased safety and operational efficiency—requiring fewer personnel, enabling faster setup, and reducing mobilization costs.
Engine Power | 129 kW (173 HP) | |
Max Width | 2.000 mm | 6.5 ft |
Weight | 12.000 - 13.000 kg | 26,450 - 28,650 lbs |
Mast Feed | 4.700 mm | 15.4 ft |
Feed Force | 6.500 daN | 14,613 lbs |
Retract Force |
9.500 / 15.000 daN |
21,357 / 33,721 lbs |
Rotary Torque | 435 - 1.300 daNm | 3,208 - 9,588 lb*ft |
Rotary Torque | 45 - 140 rpm | |
Clamp Range | 45 - 420 mm | 1.8 - 16.5 in |
