Vertical Multipurpose Rigs

Microdrilling

Comacchio drilling rigs are broadly used in geotechnical engineering for the installation of micropiles. The Comacchio range includes a wide choice of models, featuring a rigid and robust mast design that guarantees precise on-hole positioning and perfect verticality. Their masts are designed to provide long strokes supporting highly productive micropiles construction methodologies, such as jet grouting and CFA.

Jet grouting is an extremely flexible and effective method of ground consolidation or waterproofing based on the use of very high-pressure fluid jets. The Comacchio drilling rigs can be configured for single, double and triple fluid jet grouting, satisfying the most varied needs. Our offering ranges from compact models sized to work inside buildings and in confined or low headroom spaces to large drilling rigs reaching up to 33 m depth in a single pass with the use of telescopic mast extensions.

The so-called ‘F configuration’, available on most models, allows our vertical drilling rigs to be effectively utilized for CFA (Continuous Flight Auger) drilling and conventional auger drilling (both cased and uncased).

Vertical Multipurpose Rigs MODELS

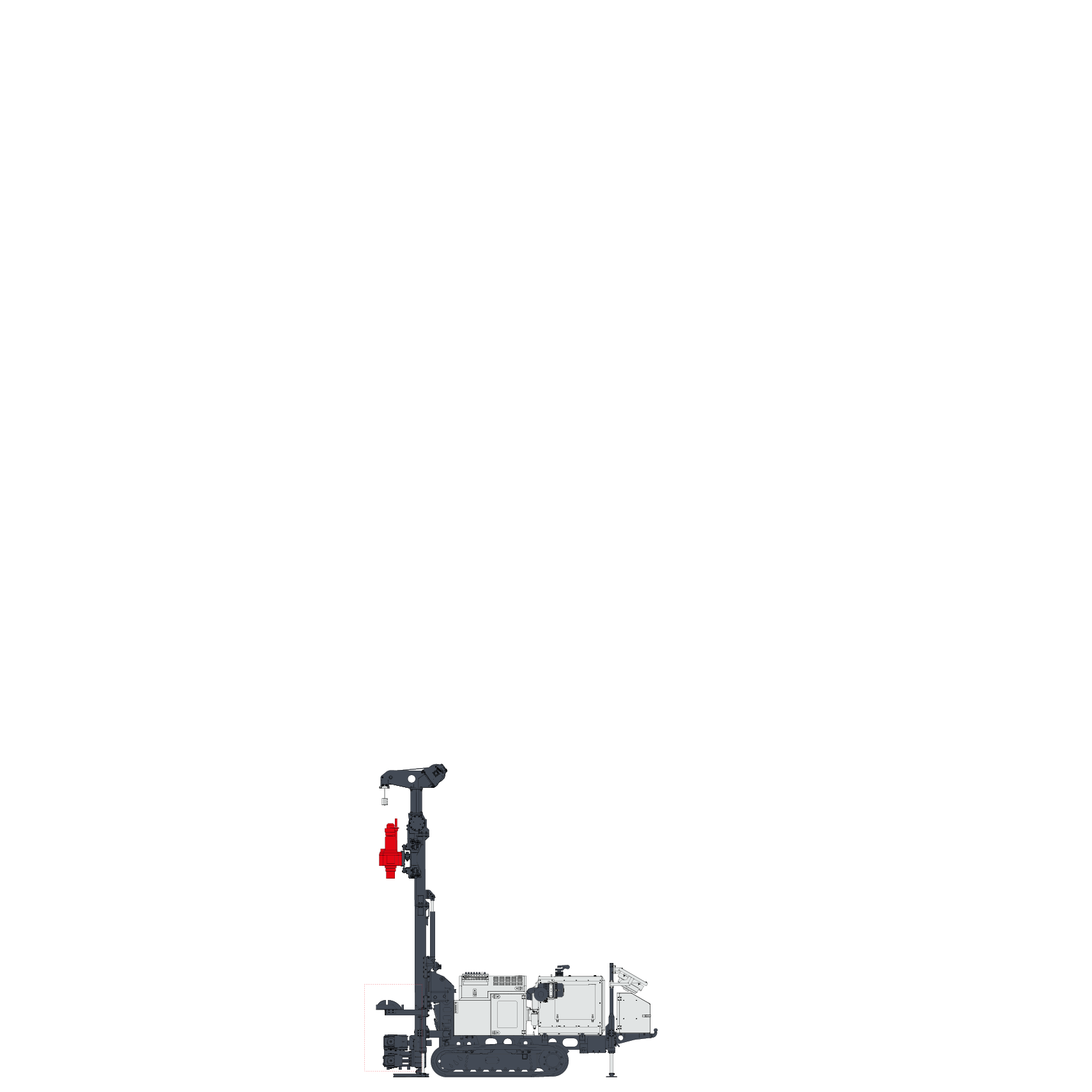

MC 4

MC 4

MC 4

EU | US

Engine Power 55 kW
Retract Force 5.400 daN
Weight 4.000 - 4.500 kg



Engine Power 74 HP
Retract Force 12,140 lbs
Weight 8,800 - 9,900 lbs

Continue

MC 6 V

MC 6 V

MC 6 V

EU | US

Engine Power 100 kW
Retract Force 5.400 daN
Weight 5.800 - 6.000 kg

Engine Power 134 HP
Retract Force 12,140 lbs
Weight 12,700 - 13,200 lbs

Continue

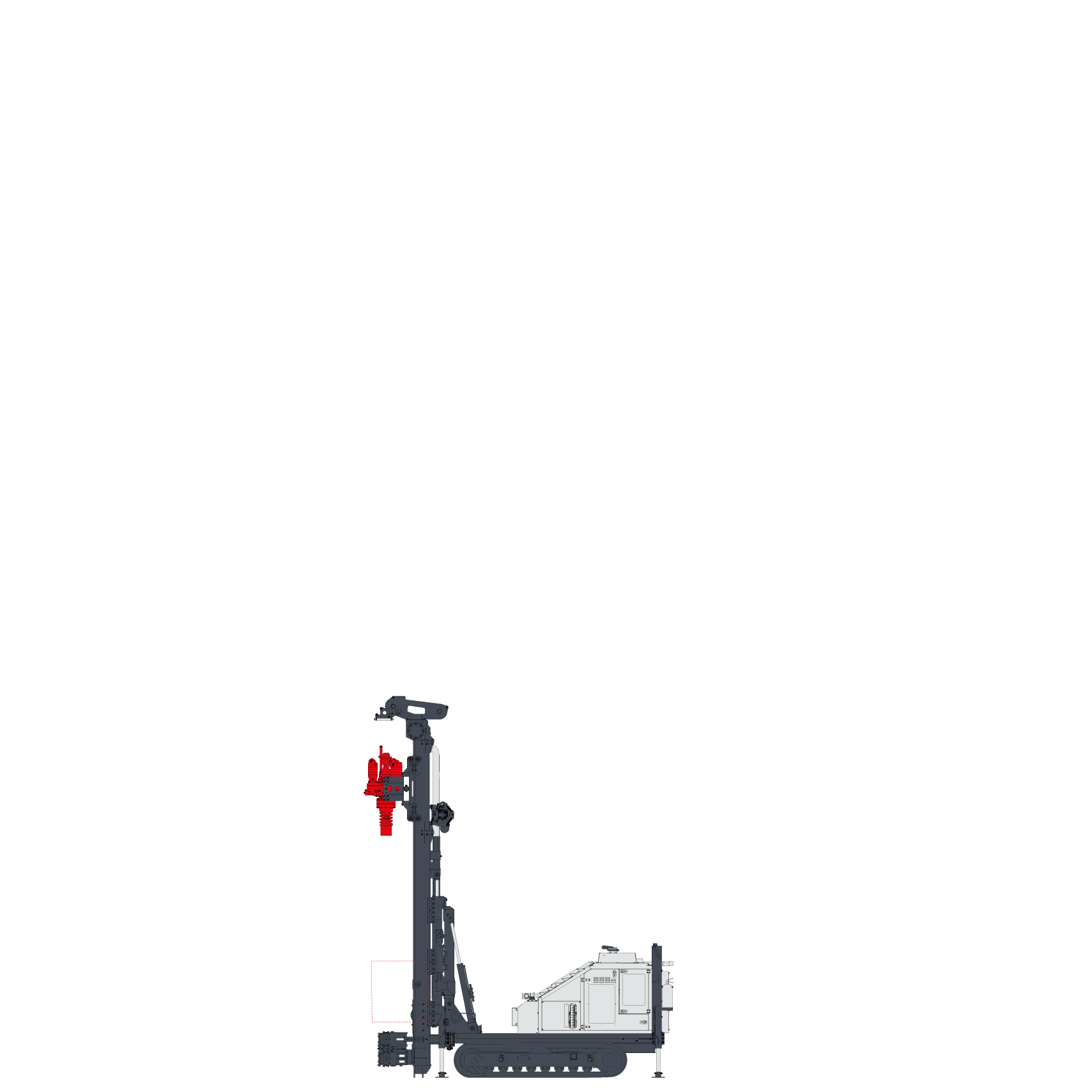

MC 10

MC 10

MC 10

EU | US

Engine Power 115 kW
Retract Force 8.000 daN
Weight  10.000 - 11.000 kg

Engine Power 154 HP
Retract Force 17,984 lbs
Weight 22,000 - 24,000 lbs

Continue

MC 16

MC 16

MC 16

EU | US

Engine Power 160 kW
Retract Force 18.000 daN
Weight 15.000 - 16.500 kg

Engine Power 214 HP
Retract Force 40,466 lbs
Weight 33,000 - 36,300 lbs

Continue

MC 21

MC 21

MC 21

EU | US

Engine Power 168 kW
Retract Force 8.000 daN
Weight 21.000 - 22.000 Kg

Engine Power 225 HP
Retract Force 17,984 lbs
Weight 46,300 - 48,500 lbs

Continue

MC 24

MC 24

MC 24

EU | US

Engine Power 225 kW
Retract Force 14.000 daN
Weight 22.500 - 24.000 kg

Engine Power 302 HP
Retract Force 31,473 lbs
Weight 49,600 - 52,900 lbs

Continue

MC 30

MC 30

MC 30

EU | US

Engine Power 188 - 225 kW
Retract Force 10.000 - 15.000 daN
Weight 33.000 - 38.000 kg

Engine Power 252 - 302 HP
Retract Force 22,480 - 33,721 lbs
Weight 72,700 - 83,700 lbs

Continue

MC 40

MC 40

MC 40

EU | US

Engine Power 188 - 225 kW
Retract Force 30.000 - 37.000 daN
Weight 43.000 - 46.000 kg

Engine Power 252 - 302 HP
Retract Force 67,442 - 83,179 lbs
Weight 94,800 - 101,400 lbs

Continue
