MC 30

Jet grouting

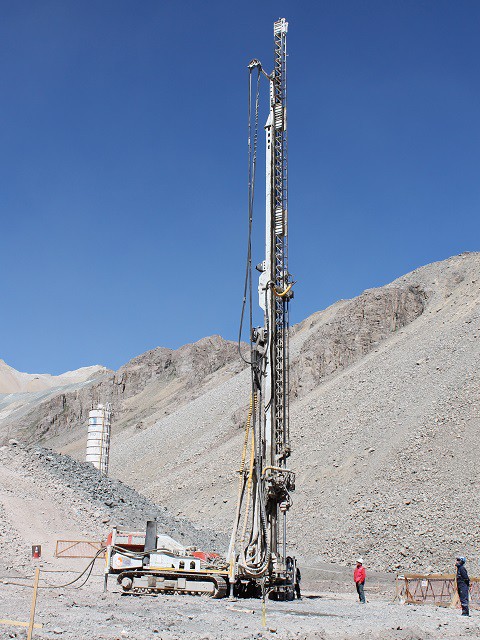

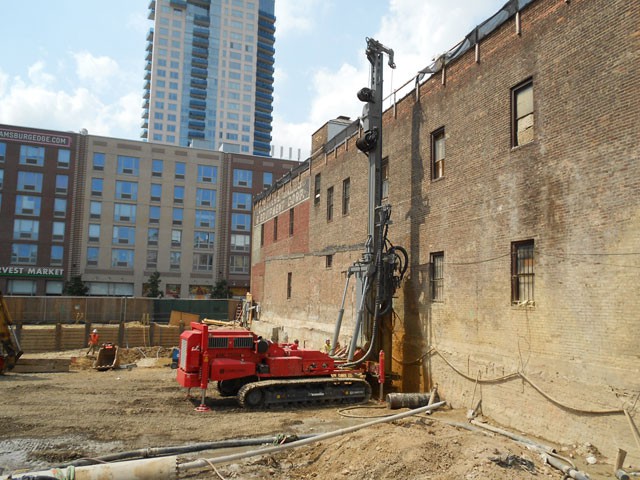

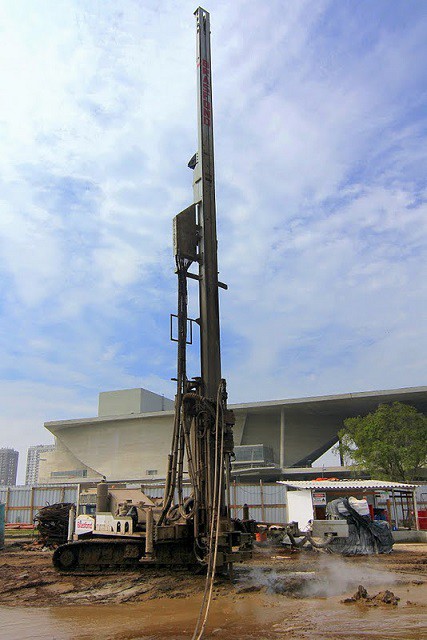

The MC 30 is a high performance hydraulic drilling rig designed for civil engineering works such as micropiles, CFA piles, jet grouting and consolidations in general. The rig’s robust base structure allows for the installation of a 16 m (52.5 ft) feed stroke mast, with optional mast extensions increasing the range up to 39 m (128 ft) for jet grouting or equipping the rig with the rod carousel. These features allow for drilling to a considerable depth with single passage or by means of semi-automatic rod loading.

The MC 30 can utilize a wide range of rotary heads, hydraulic drifters, double head systems and drilling accessories which are suitable for rotary or rotary-percussive drilling and can be equipped with hydraulic proportional servo-assisted controls or with a radio control

TECH DATA

Engine Power 188 - 225 kW (255 - 302 HP)
Max Width 2.500 - 3.600 mm 8.2 - 11.8 ft
Weight 33.000 - 38.000 kg 72,700 - 83,700 lbs
Mast Feed 13.000 - 16.000 mm 42.6 - 52.4 ft
Feed Force 10.000 - 15.000 daN 22,480 - 33,721 lbs
Retract Force 10.000 - 15.000 daN 22,480 - 33,721 lbs
Rotary Torque 1.700 - 5.500 daNm 12,538 - 40,565 lb*ft
Rotary Speed Range 24 - 260 rpm
Clamp Range 45 - 530 mm 1.8 - 20.9 in
