MC 16

Compact rig for mini piling

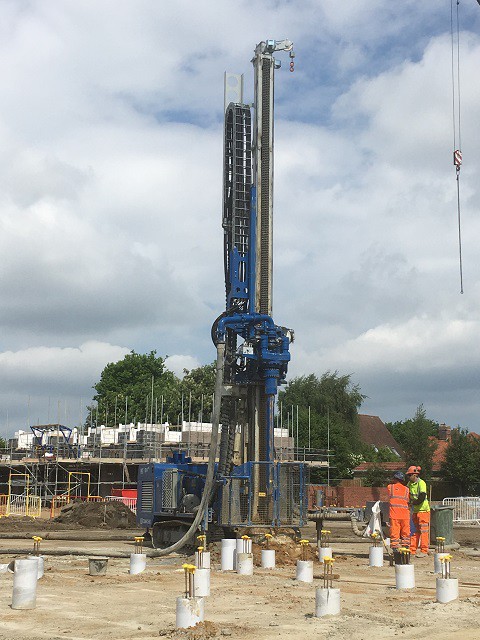

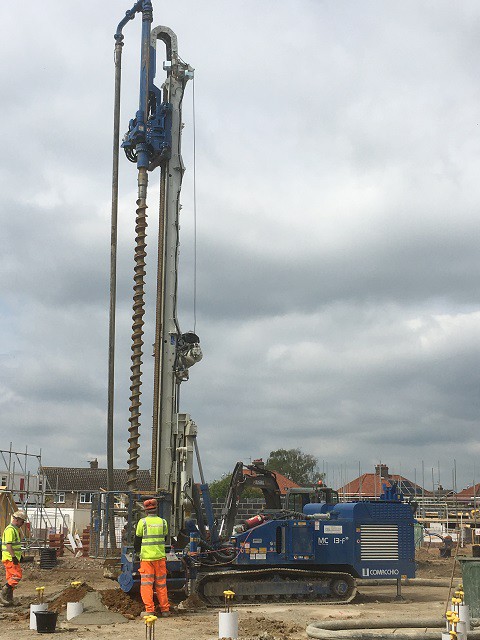

The MC 16 is part of the Comacchio line-up of drill rigs for vertical applications. The mast design of these rigs was simplified to raise from its near horizontal transport position to vertical and has a 5° (or 15°, depending on mast length) side slew offering maximum performance for vertical drilling. The MC 16 can be used for all rotary and rotary-percussive drilling methods, including high efficiency large diameter down-the-hole hammers with up to 600 mm diameter. The machine can be equipped with hydraulic proportional servo-assisted controls or with the innovative Comacchio radio control systemIn its "F-Line configuration" the MC 16 is ideally suited for concrete injection operations (mini piles) using solid stem and continuous flight augers (CFA). The modular mast structure allows for a feed stroke ranging from 3.100 to 8.600 mm, with an option to add a 2.5 m auger extension allowing the machine to drill up to 11 m deep without adding additional auger sections.  Like all Comacchio rigs, the MC 16 can be customized according to specific needs.

TECH DATA

Engine Power 160 kW (214 HP)
Max Width 2.200 mm 7.2 ft
Weight 15.000 - 16.500 kg 33,000 - 36,300 lbs
Mast Feed 3.100 - 8.600  mm 10.1 -  28.2 ft
Feed Force 13.000 daN 29,225 lbs
Retract Force 18.000 daN 40,466 lbs
Rotary Torque 2.000 - 5.500 daNm 14,751 - 40,565 lb*ft
Rotary Speed Range 24 - 210 rpm
Clamp Range 45 - 530 mm 1.8 - 20.9 in
