Drilling Attachments

Microdrilling

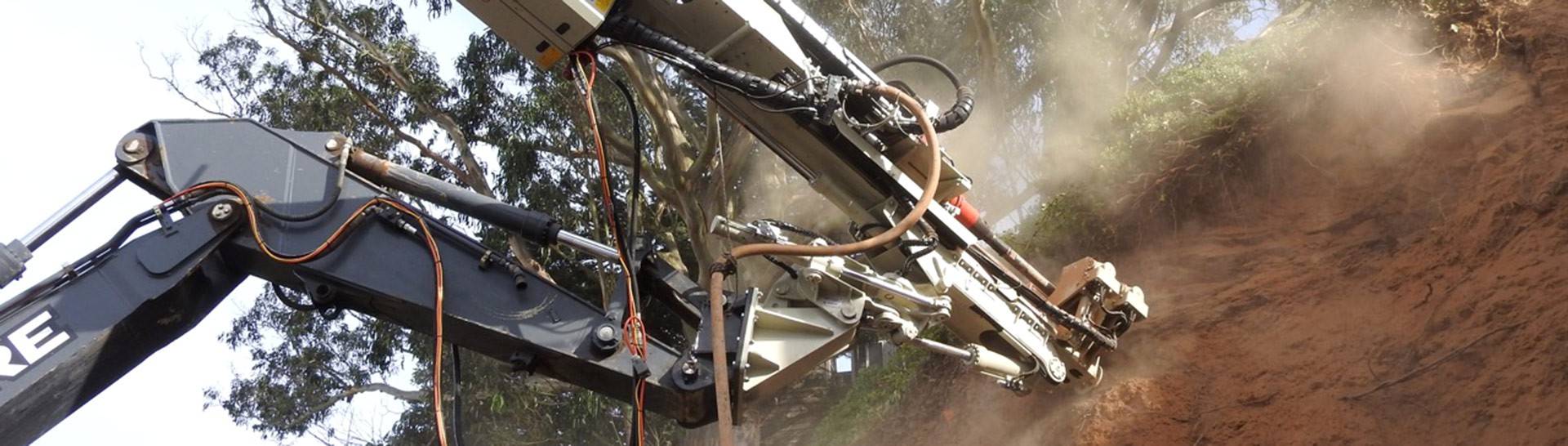

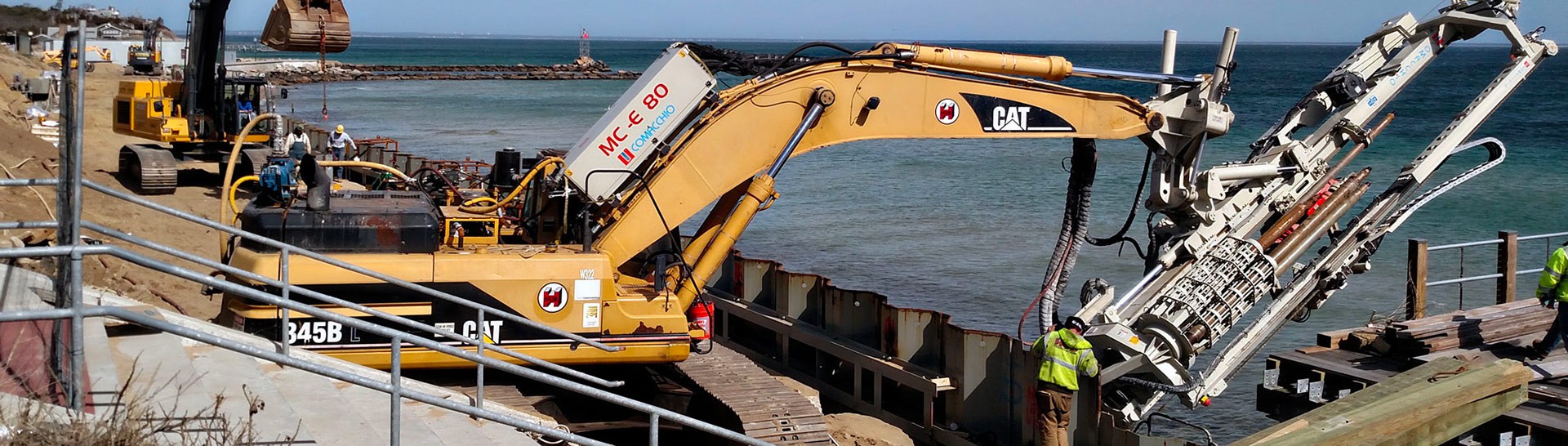

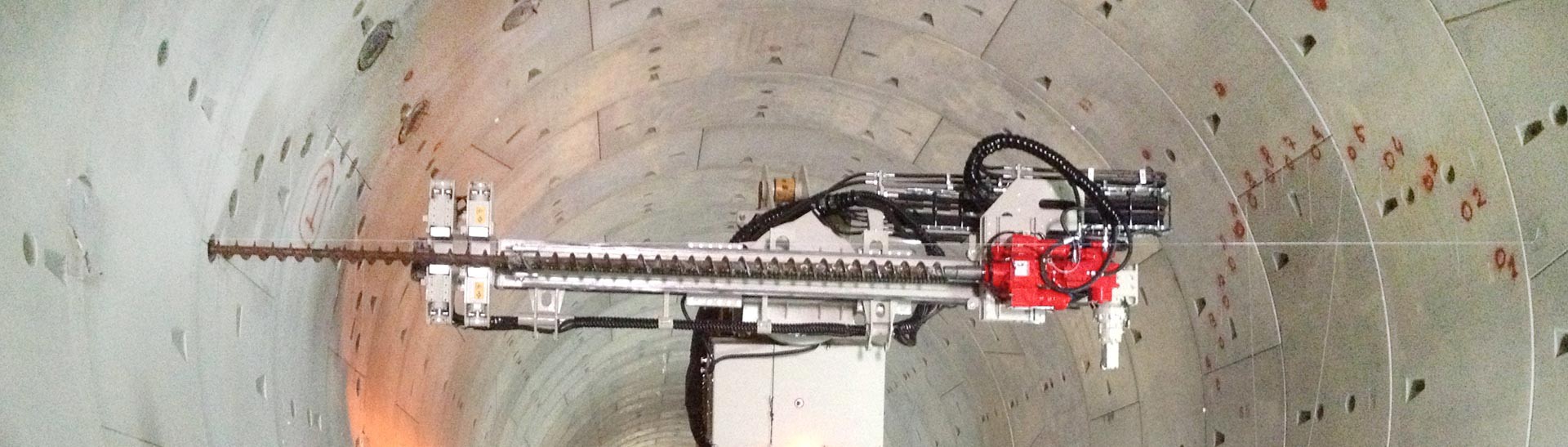

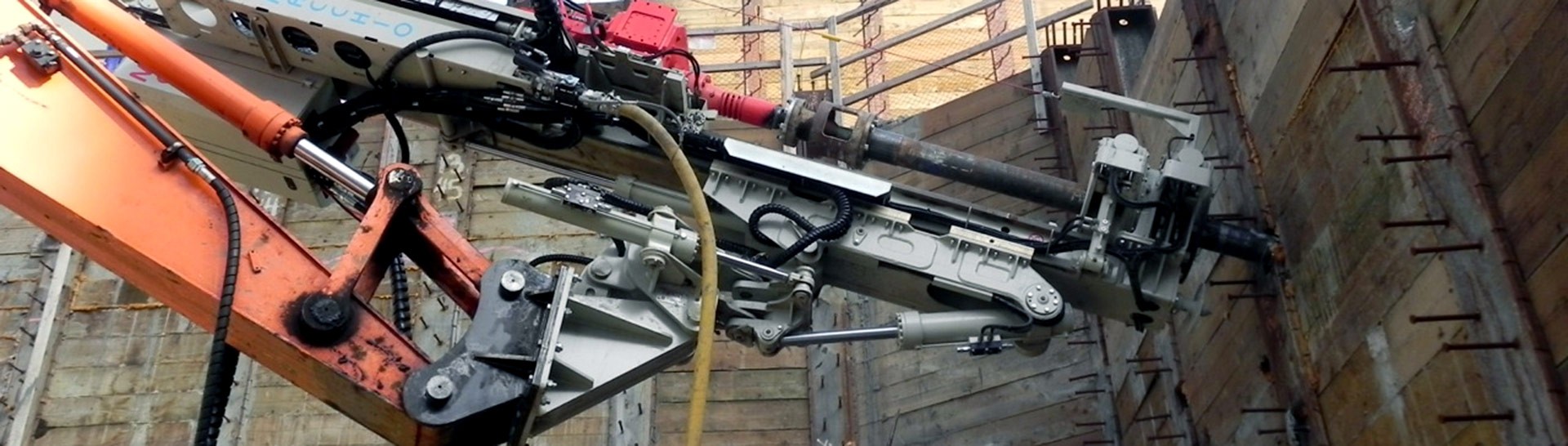

The Comacchio MC-E line has been designed to satisfy the specific request to operate in restricted access working spaces, where particular soil configuration, bearing capacity and limited space make it impossible to use a crawler mounted drilling rig: docks, road edges, rock walls, slopes etc. The drilling attachments of the MC-E line are installed on the end of hydraulic excavator booms. Using the excavator boom movements combined with a slewing ring or with the Comacchio patented mast joint support, these machines can reach an extreme variety of mast positions and inclinations. All the mast movements and the rotary head are powered by the appropriately fitted hydraulic circuit of the excavator.

Mainly used for ground improvement works and anchor drilling, the MC-E line includes a remarkable variety of models that, depending on the excavator size, can reach up to 15 tonnes pull-up force. The drilling attachments of the MC-E line can be equipped with a wide range of rotary heads and hydraulic drifters capable of operating all rotary and/or rotary-percussive drilling systems. All set-up and drilling movements can be controlled by the operator directly from the excavator cabin, using the Comacchio radio remote control, with great advantages in terms of efficiency, productivity and safety. In recent years, the development of automated rod and casings carousels has contributed to further improvement of the safety performance of our MC-E drilling attachments.

Drilling Attachments MODELS

MC-E 12

MC-E 12

MC-E 12

EU | US

Excavator Class 5 ton
Retract Force 1.200 daN
Weight 500 - 600 kg

Excavator Class 5 ton
Retract Force 2,697 lbs
Weight 1,100 - 1,300 lbs

Continue

MC-E 25

MC-E 25

MC-E 25

EU | US

Excavator Class 15 ton
Retract Force 2.500 daN
Weight 1.500 - 1.600 kg

Excavator Class 15 ton
Retract Force 5,620 lbs
Weight  3,300 - 3,500 lbs

Continue

MC-E 30

MC-E 30

MC-E 30

EU | US

Excavator Class 14 - 15 ton
Retract Force 3.500 daN
Weight 2.300 - 2.500 kg

Excavator Class 14 - 15 ton
Retract Force 7,868 lbs
Weight 5,000 - 5,500 lbs

Continue

MC-E 40

MC-E 40

MC-E 40

EU | US

Excavator Class 18 - 20 ton
Retract Force 5.000 daN
Weight 2.500 - 3.500 kg

Excavator Class 18 - 20 ton
Retract Force 11,240 lbs
Weight 5,500 - 5,700 lbs

Continue

MC-E 45

MC-E 45

MC-E 45

EU | US

Excavator Class 18 - 20 ton
Retract Force 4.500 daN
Weight 2.500 - 3.000 kg

Excavator Class 18 - 20 ton
Retract Force 10,110 lbs
Weight 5,500 - 6,600 lbs

Continue

MC-E 60

MC-E 60

MC-E 60

EU | US

Excavator Class 25 - 30 ton
Retract Force 5.500 daN
Weight 4.000 - 4.500 kg

Excavator Class 25 - 30 ton
Retract Force 12,364 lbs
Weight 8,800 - 9,900 lbs

Continue

MC-E 80

MC-E 80

MC-E 80

EU | US

Excavator Class 35 - 36 ton
Retract Force 8.000 daN
Weight 9.000 - 10.000 kg

Excavator Class 35 - 36 ton
Retract Force 17,984 lbs
Weight 19,800 - 22,000 lbs

Continue

MC-E 100

MC-E 100

MC-E 100

EU | US

Excavator Class 40 - 50 ton
Retract Force 15.000 daN
Weight 10.000 - 10.500 kg

Excavator Class 40 - 50 ton
Retract Force 33,721 lbs
Weight 22,000 - 23,000 lbs

Continue
