MC 2D

The MC 2D is a light and powerful modular hydraulic drill unit that can be mounted on scaffolds, crawlers, skid frames or other special supports.

The MC 2D can utilize 2” to 4” D.T.H. hammers, augers and coring equipment.

Download the technical datasheet MC 2D
33 kW
44 HP
30 kW
40 HP
1200 daN
2,700 lbs
1 + 1,6 ton
1 + 1.6 ton
MC 2D render

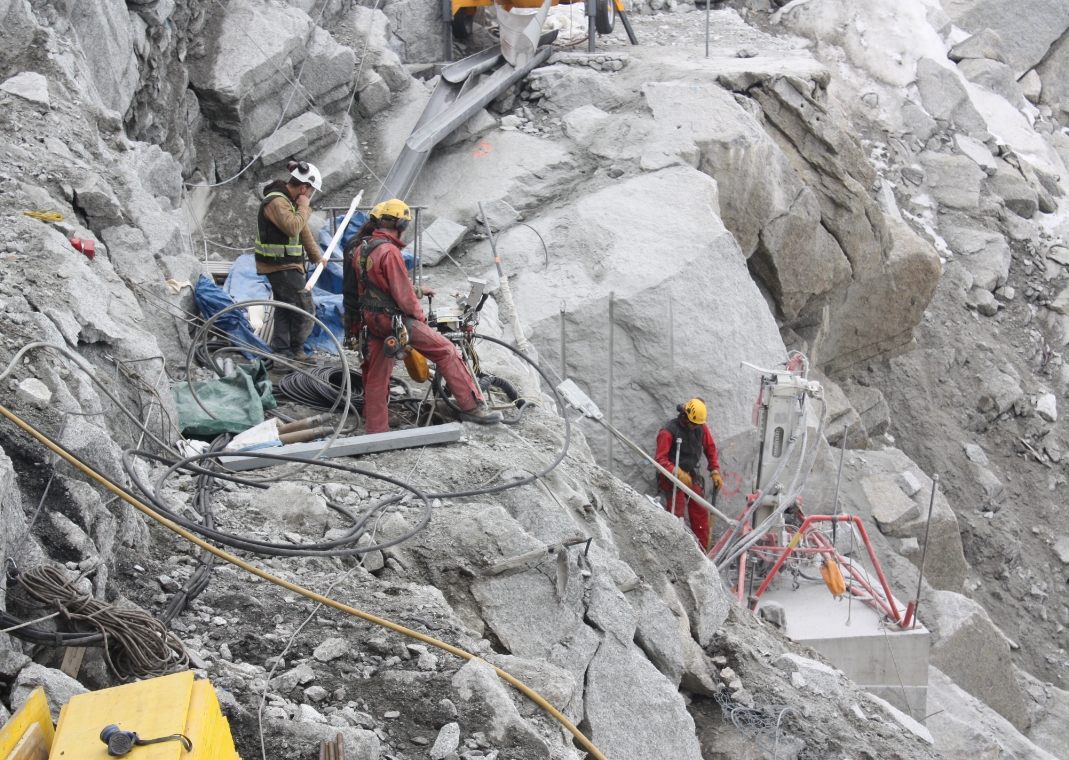

Comacchio performance in the field: technology at work

/

Overall track width

 760 - 1160 mm 2' 5" - 3' 9"

Diesel Engine Power

 33 kW 44 HP

Emission standards

 Stage 3A/Tier 4i - Stage 5/Tier 4f Stage 3A/Tier 4i - Stage 5/Tier 4f

Electric Motor Power

 30 kW 40 HP

Retract force

 1200 daN 2,698 lbs

Feed force

 1200 daN 2,698 lbs

Feed stroke

 1.250 - 2.050 mm 4' 1" - 6' 8"

Torque range

 200 - 480 daNm 1,475 - 3,540 lb*ft

Speed range

 80 - 580 rpm 80 - 580 rpm

Clamping range

 45 - 185 mm 1" 3/4 - 7" 5/16

Weight range of power pack

 1 - 2,2 t 2,205 - 4,850 lbs

Weight range of drill rig

 0,6 - 1,5 t 1,323 - 3,307 lbs

LIMITED ACCESS RIGS WITH REMOTE POWER PACK

View other models

MC 3D

MC 4D

MC 5D

MC 8D

Explore other models in the MC range
