MC 40
The MC 40 is a high-output hydraulic drilling rig, particularly suited for the installation of large-diameter micropiles and the construction of piles using CFA technology.
The rig is built on a heavy-duty base structure featuring a variable-width undercarriage fitted with a 360° slewing ring, ensuring high stability even in the most demanding applications, including large-diameter down-the-hole (DTH) drilling. The robust pantograph articulation is designed for efficient single-pass operations with a long-stroke mast. Thanks to its flexible design, the MC 40 can be configured not only for traditional micropile applications, but also for the construction of piles using the CFA (Continuous Flight Auger) method or conventional augers, as well as for FDP piles.

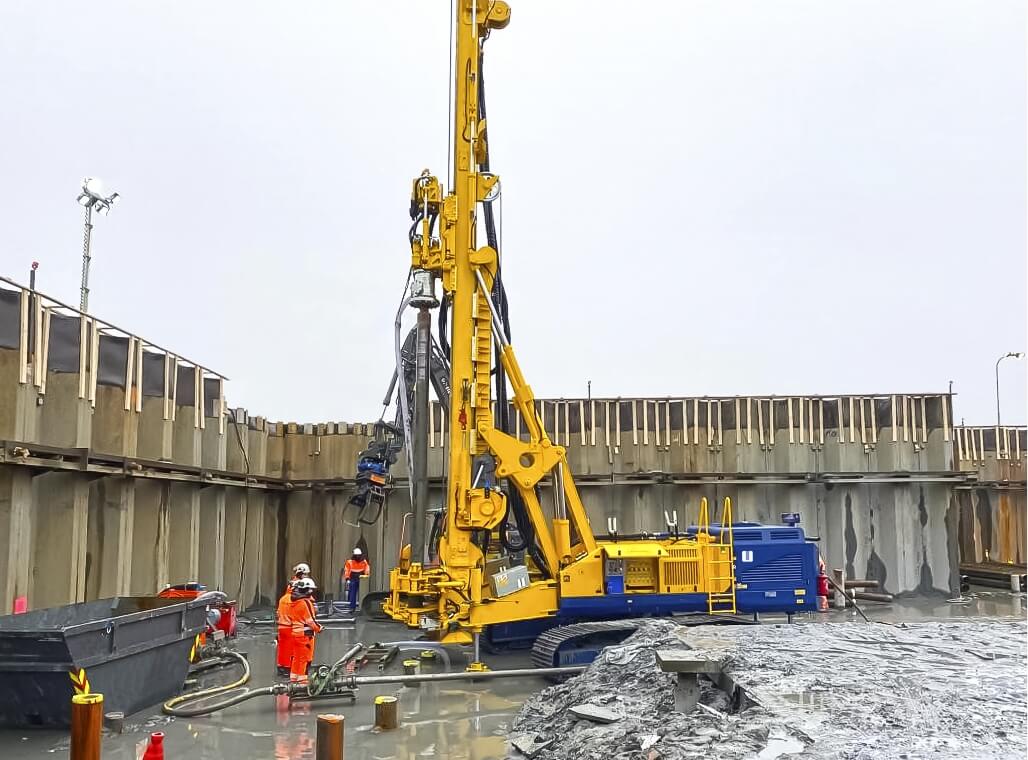

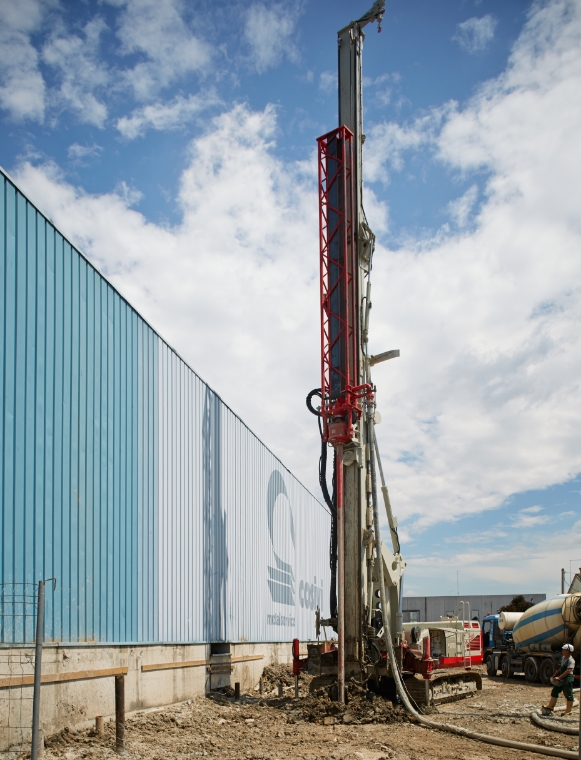

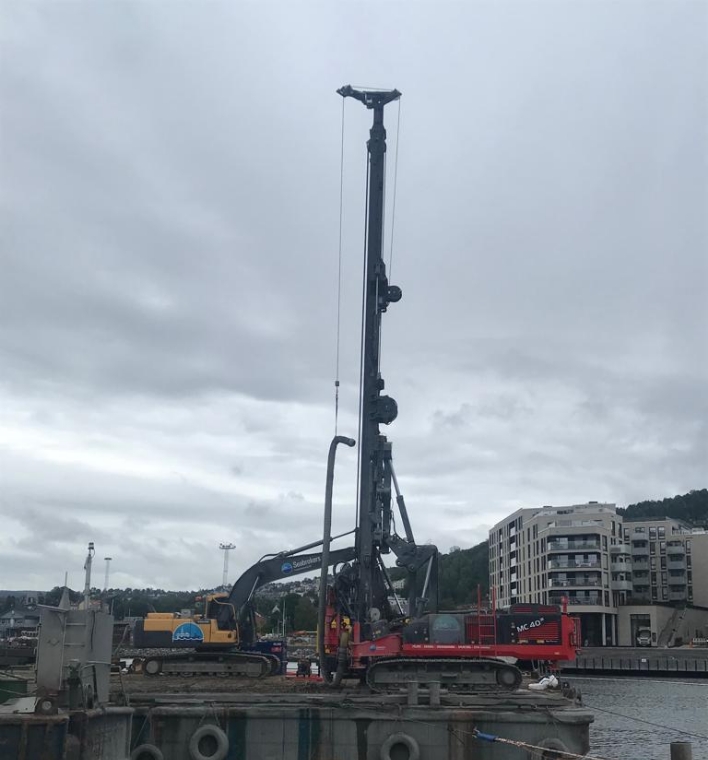

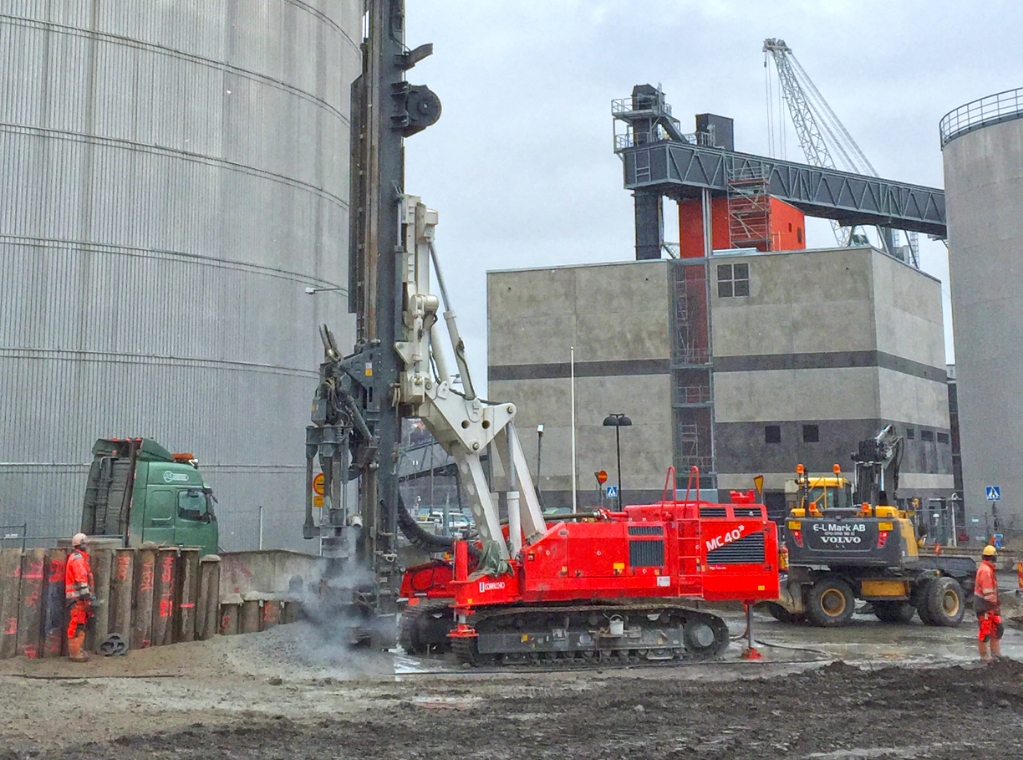

Watch the MC 40 in action
Comacchio performance in the field: technology at work
|
Overall track width |
2.500 - 4.000 mm | 8' 2" - 13' 1" | |
|
Diesel Engine Power |
205 - 225 kW | 278 - 302 HP | |
|
Emission standards |
Stage 3A / Tier 3 - Stage 5/Tier 4f | Stage 3A / Tier 3 - Stage 5/Tier 4f | |
|
Retract force |
30.000 - 37.000 daN | 67,443 - 83,179 lbs | |
|
Feed force |
30.000 - 37.000 daN | 67,443 - 83,179 lbs | |
|
Feed stroke |
14.300 - 16.000 mm | 46' 10" - 52' 5" | |
|
Torque range |
3.750 - 10.000 daNm | 27,659 - 73,756 lb*ft | |
|
Speed range |
36 - 150 rpm | 36 - 150 rpm | |
|
Clamping range |
76 - 620 mm | 3" - 2' | |
|
Weight range |
43 - 46 t | 94,799 - 101,413 lbs |
|
Auger diameter |
400 -900 mm | 1' 3" - 2' 11" | |
|
Feed stroke |
16.000 mm | 52' 5" | |
|
Extraction Force |
30.000 daN | 67,443 lbs | |
|
Max. Torque |
10.000 daNm | 73,756 lb*ft |
