MC 15P

Based on the MC 15 design, the MC 15P is a high-performance hydraulic drilling rig equipped with a superior-class engine.

Highly versatile, the MC 15P supports rotary, rotary-percussion, and rotary-vibration drilling techniques, making it suitable for a wide range of applications such as micropiles, anchors, soil nailing, jet grouting, and other foundation and ground stabilization works. Thanks to its powerful engine and high-performance hydraulic system, which incorporates electronic power management controls, the MC 15P excels in the most demanding applications. It is particularly effective for simultaneous drilling and casing using dual-head drilling systems, operating in rotary/rotary or rotary/drifter modes. To ensure stability during tramming, set-up and operation, the MC 15P is equipped as standard with an undercarriage featuring oscillating tracks, providing excellent ground contact and adaptability on uneven or sloping terrain.

Download the technical datasheet MC 15P
205 kW
278 HP
8.000 daN
17,985 lbs
17 - 19 ton
17 - 19 ton
MC 15P render

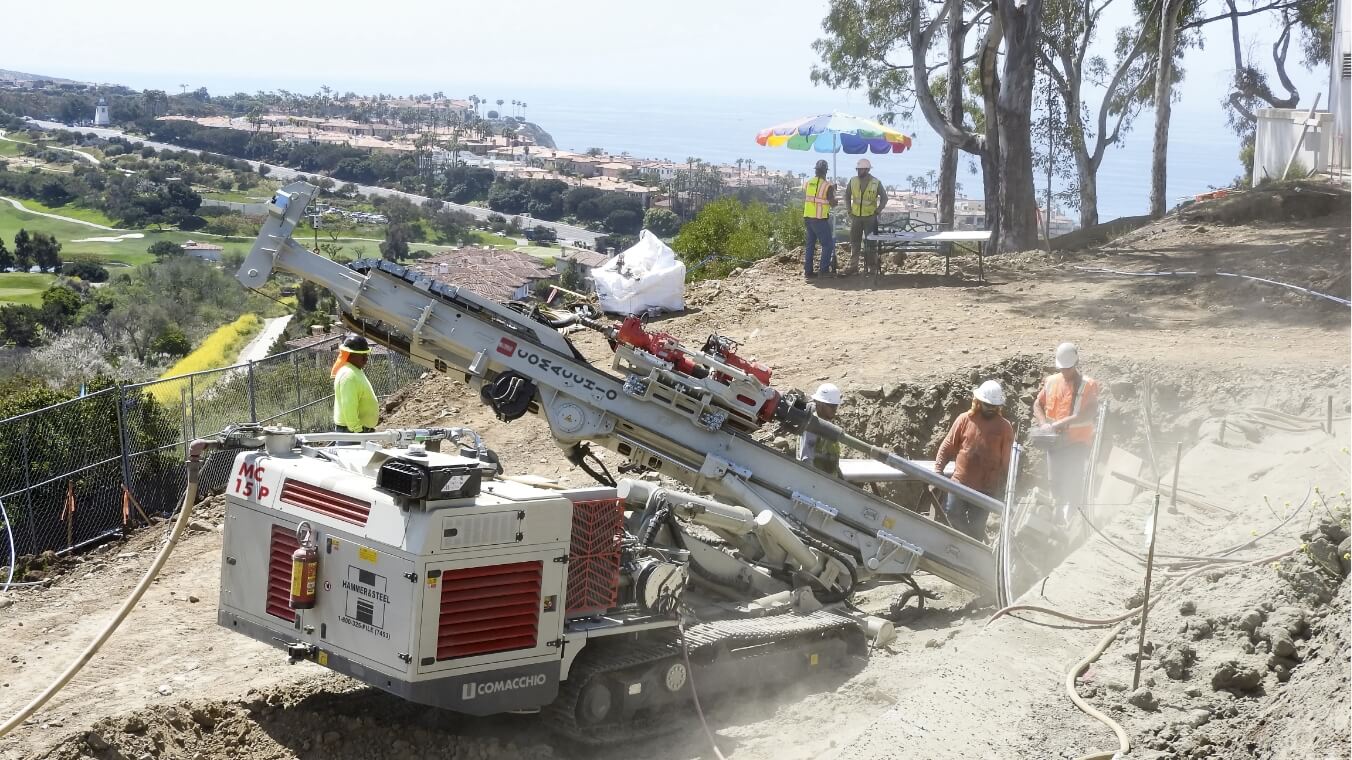

Comacchio performance in the field: technology at work

/

Overall track width

2.300 mm 7' 6"

Diesel Engine Power

205 kW 278 HP

Emission standards

Stage 5/Tier 4f Stage 5/Tier 4f

Retract force

8.000 daN 17,985 lbs

Feed force

8.000 daN 17,985 lbs

Feed stroke

4.000 - 7.000 mm 13' 1" - 22' 11"

Torque range

1.700 - 2.900 daNm 12,539 - 21,389 lb*ft

Speed range

200 - 260 rpm 200 - 260 rpm

Clamping range

45 - 530 mm 1" 3/4 - 1' 8"

Weight range

17 - 19 t 37,479 - 41,888 lbs

Max. torque upper head

1.350 daNm 9,957 lb*ft

Max. torque lower head

2.900 daNm 21,389 lb*ft

Mast feed stroke

3.800 - 6.550 mm 12' 5" - 21' 5"

Max. depth single pass

19.000 mm 62' 4"

Max. rod size

114 mm 4" 1/2
