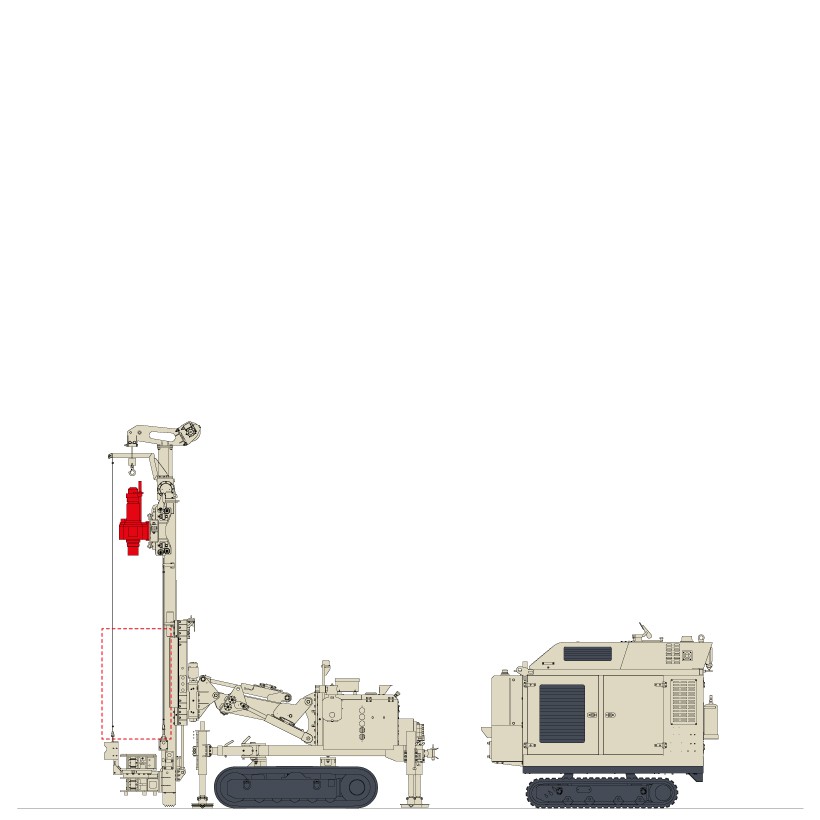

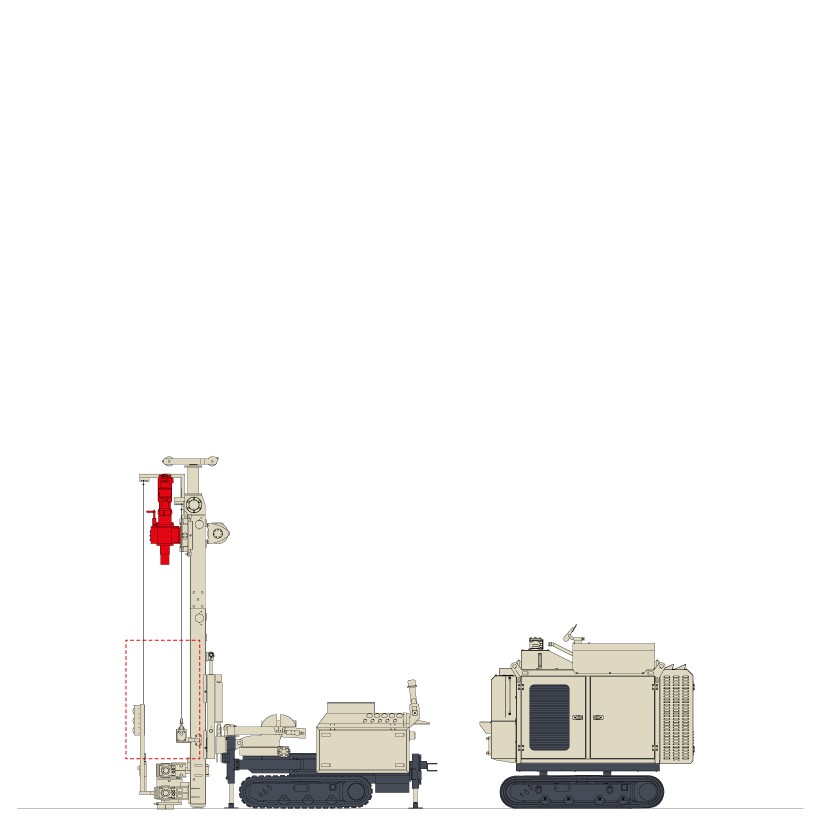

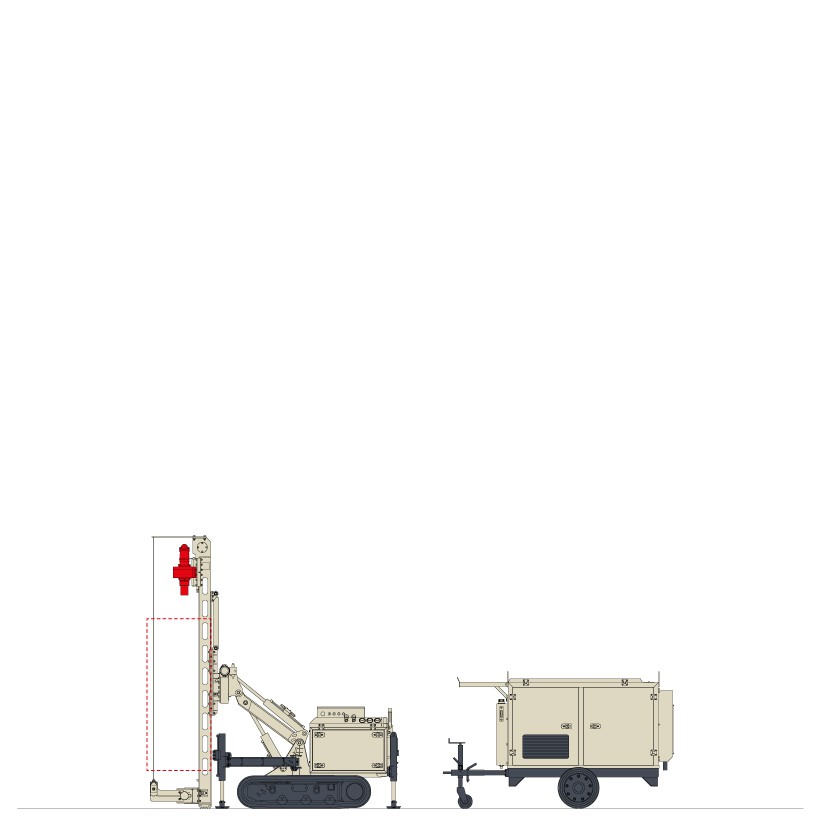

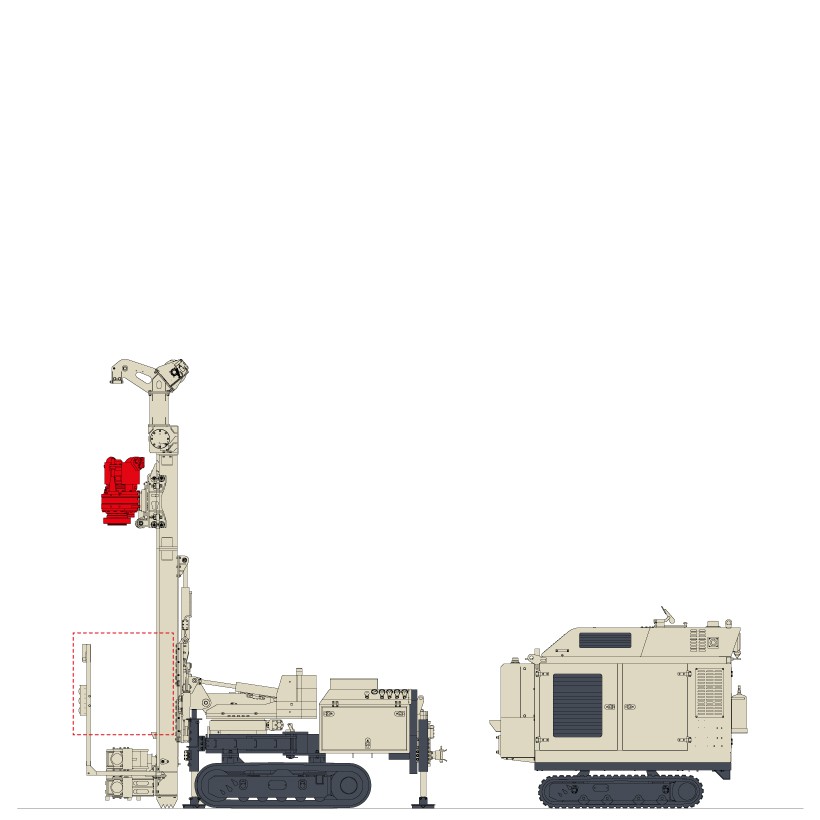

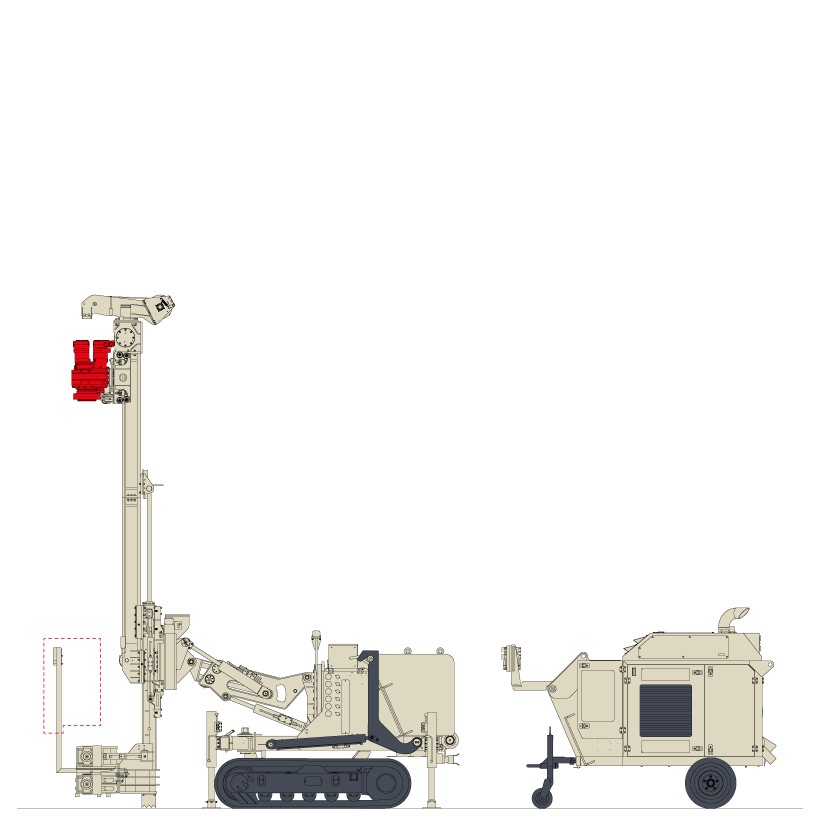

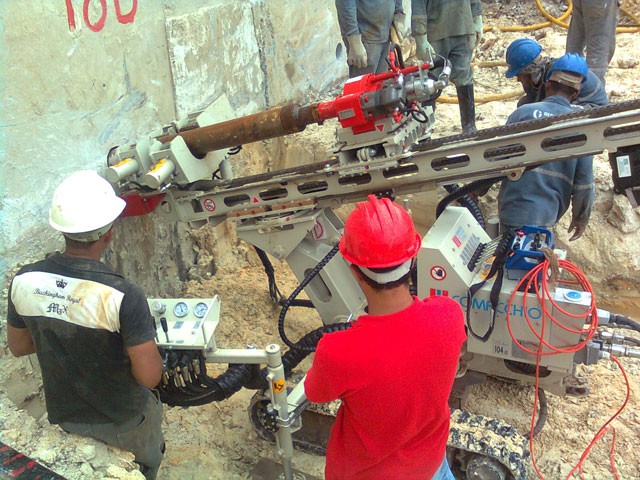

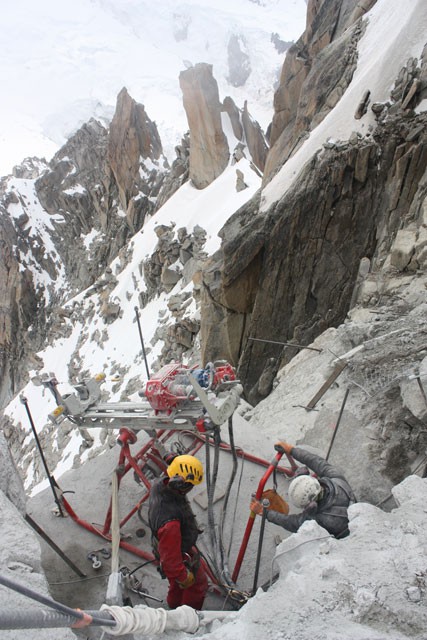

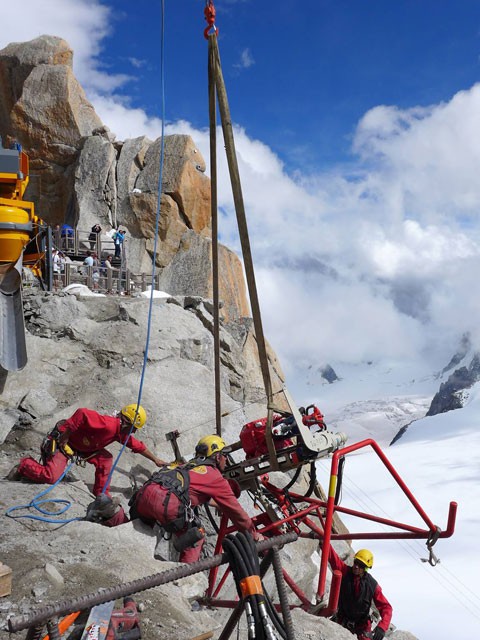

The MC 2D is a light and powerful modular hydraulic drill unit. The MC 2D can be mounted on scaffolds, crawlers, skid frames or other special supports and can utilize 2” to 4” D.T.H. hammers, augers and coring equipment.
| Diesel engine Power | 33 kW (44 HP) | |
| Electric motor | 30 kW (40 HP) | |
| Max. width | 760 - 1.165 mm | 2' 5" - 3' 9'' |
| Weight | 0,6-1,5 ton + 1-2,2 ton | |
| Mast Feed | 1.250 - 2.050 mm | 4' 1" - 6' 8" ft-in |
| Feed Force | 1.200 daN | 2,697 lbs |
| Retract Force | 1.200 daN | 2,697 lbs |
| Rotary Torque | 200 - 430 daNm | 1,475 - 3,171 lb*ft |
| Rotary Speed Range | 80 - 810 rpm | |
| Clamp Range | 45 - 185 mm | 1" 3/4 - 7" 5/16 in |
