MC 5 D

Separate power pack

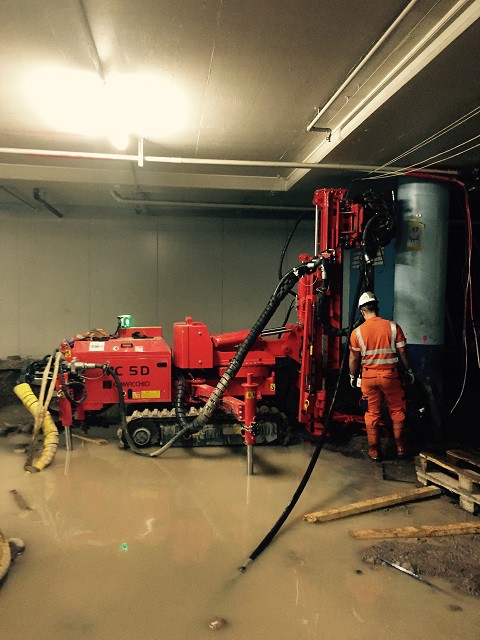

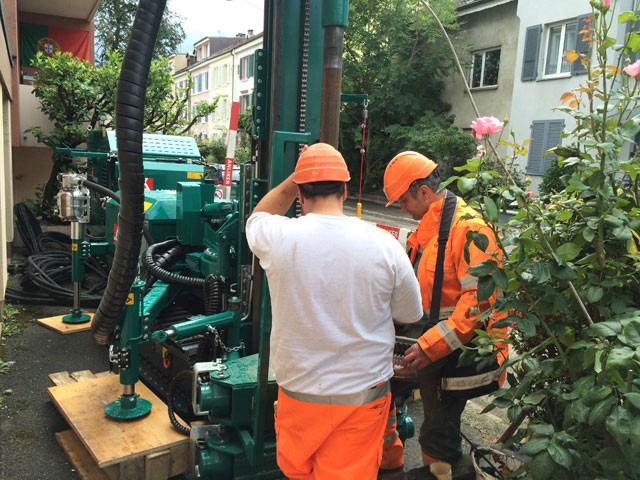

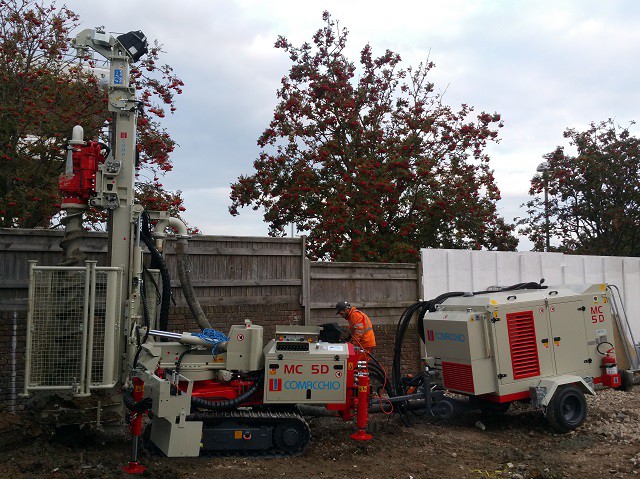

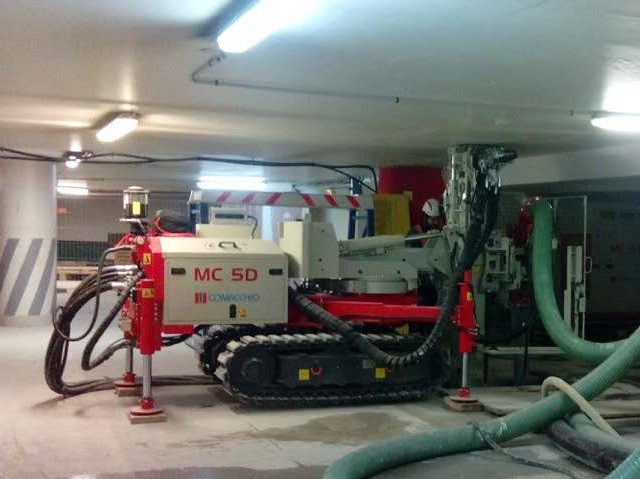

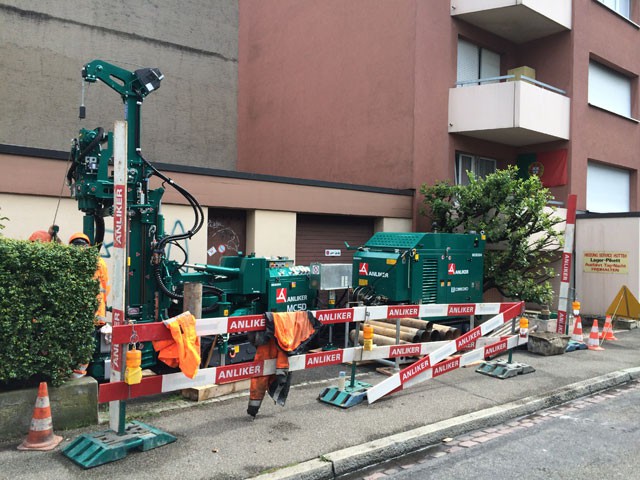

The MC 5D is a hydraulic drilling rig with separate power pack, specifically designed for the execution of ground engineering works in confined or low overhead spaces and difficult access jobsites, inside buildings, basements and small tunnels. This is possible due to the rig’s wide range of allowable movements in addition to the telescopic mast adjustment, which is available as an option. Depending on the job site requirements, this machine can be supplied with a soundproof diesel power pack or with electric power pack. Thanks to the use of advanced modular hydraulic circuits, the MC 5D can accommodate a wide range of accessories and is suitable for any type of rotary or rotary-percussive drilling. The machine can be equipped with hydraulic proportional servo-assisted controls or with the innovative Comacchio radio control system. Like all Comacchio machines, the MC 5D can be customized according to specific needs.

TECH DATA

Engine Power 86 - 100 kW (115 - 134 HP)
Max Width 900 - 1.350 mm 2.9 - 4.4 ft
Weight 5.300-5.800+2.100-2.800 kg 11,700-12,800+4,600-6,100 lbs
Mast Feed 950 - 2.550 mm 3.1 - 8.4 ft
Feed Force 3.300 - 5.400 daN 7,418 - 12,140 lbs
Retract Force 5.400 - 6.000 daN 12,140 - 13,490 lbs
Rotary Torque 450 - 2.325 daNm 3,319 - 17,148 lb*ft
Rotary Speed Range 80 - 380 rpm
Clamp Range 45 - 365 mm 1.8 - 14.4 in
