MC 4 D

Separate power pack

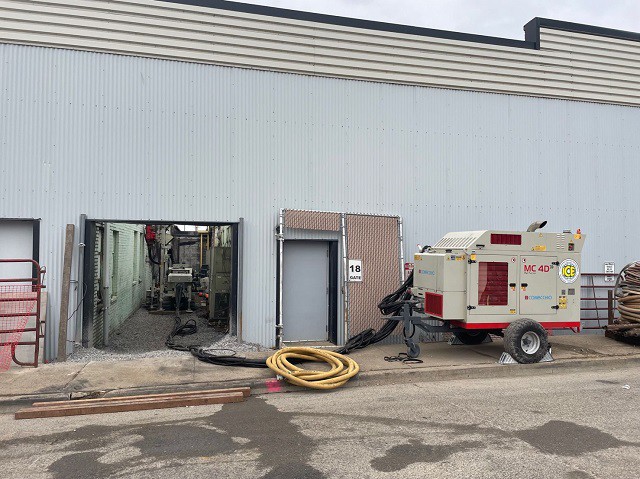

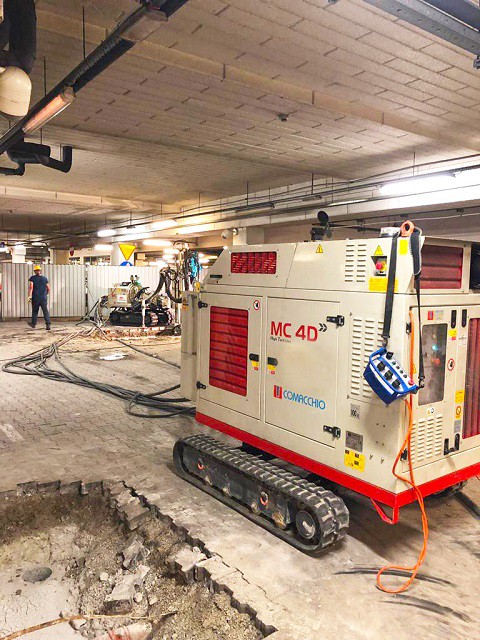

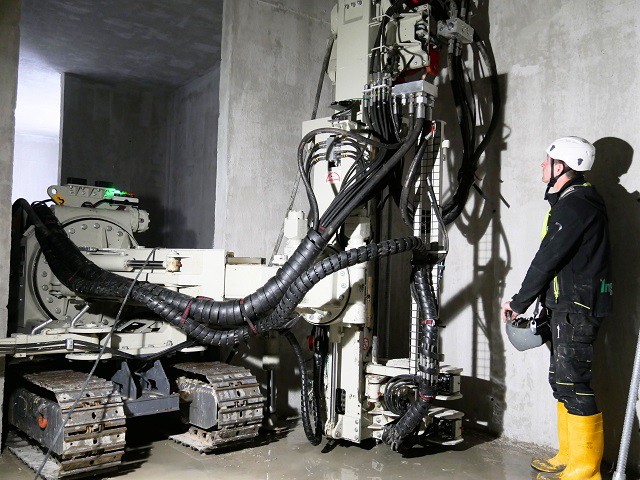

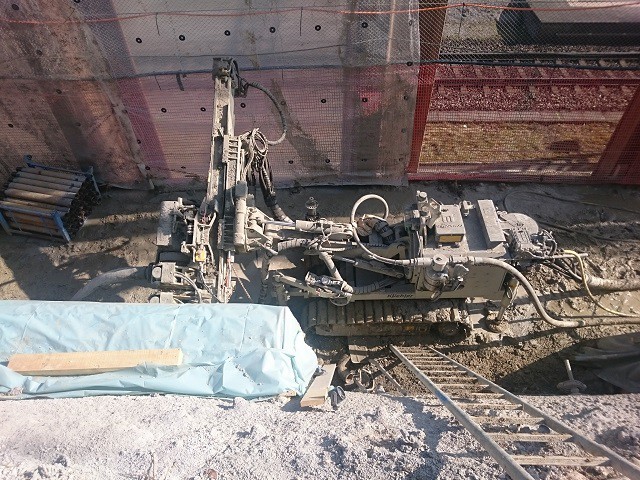

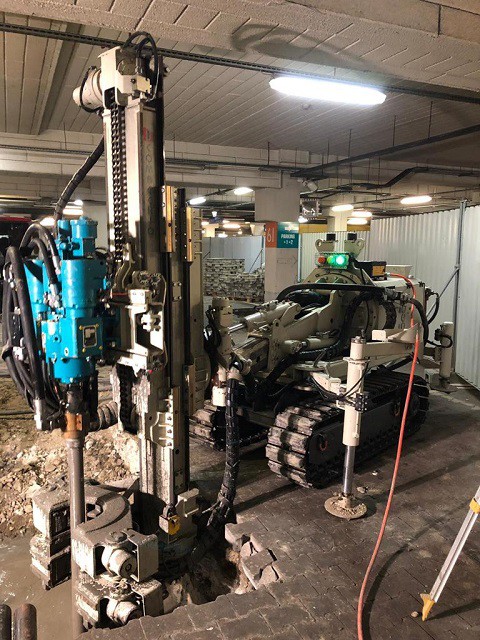

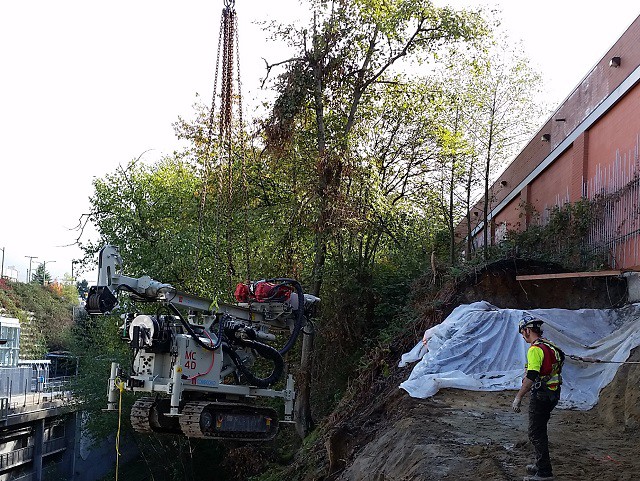

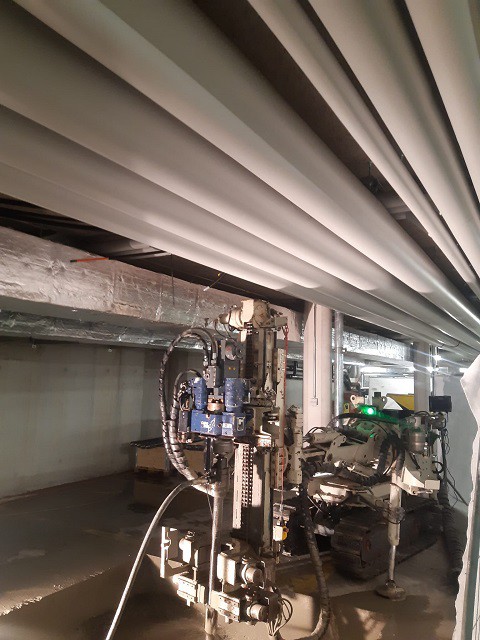

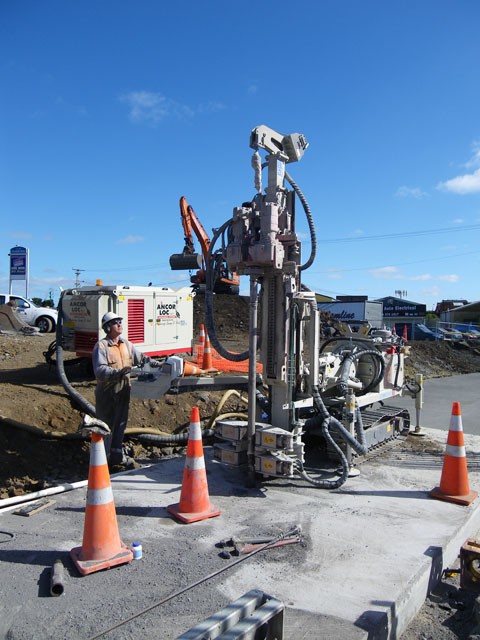

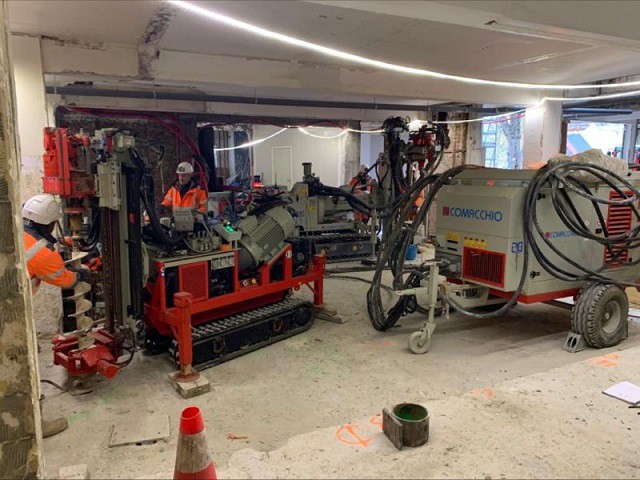

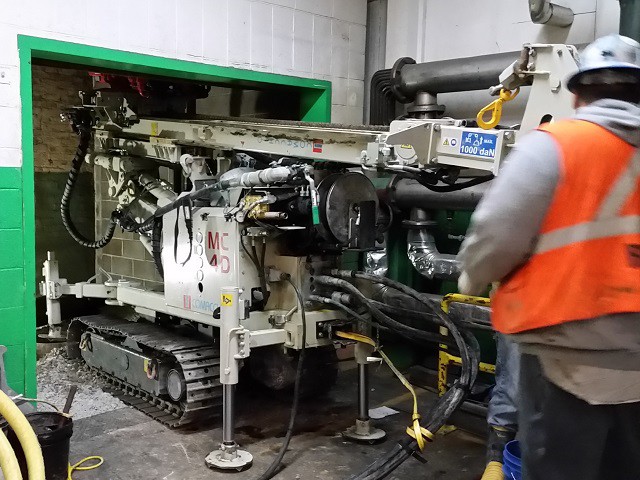

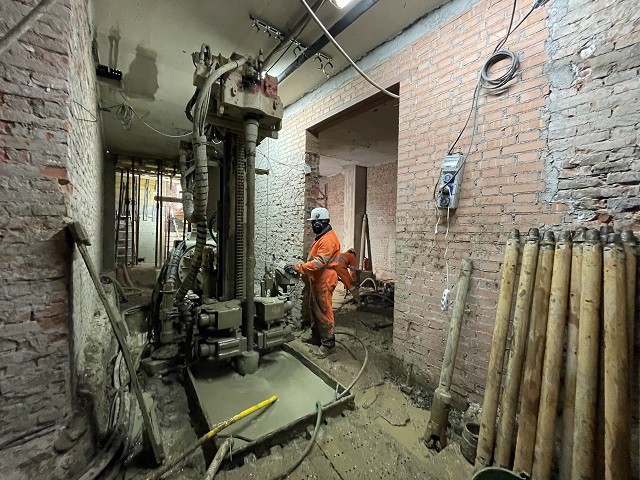

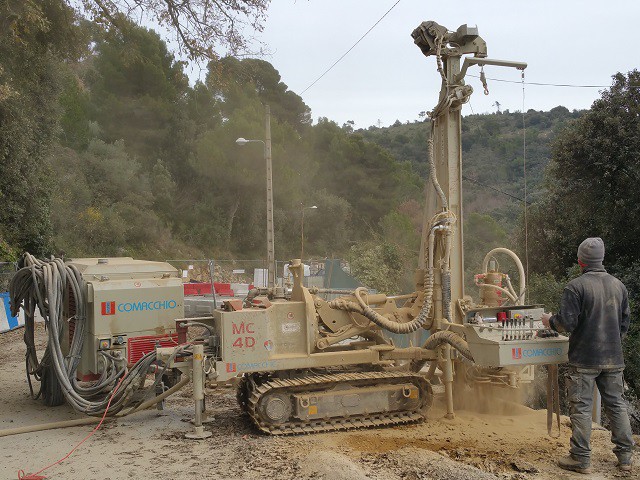

The MC 4 D is a hydraulic drilling rig with separate power pack, specifically designed for the execution of ground engineering works in confined or low overhead spaces and difficult access jobsites, inside buildings, basements and small tunnels. This is possible due to the rig’s wide range of allowable movements in addition to the telescopic mast adjustment, which is available as an option. Depending on the job site requirements, this machine can be supplied with a soundproof diesel power pack or with electric power pack. Thanks to the use of advanced modular hydraulic circuits, the MC 4D can accommodate a wide range of accessories and is suitable for any type of rotary or rotary-percussive drilling. The machine can be equipped with hydraulic proportional servo-assisted controls or with the innovative Comacchio radio control system. Like all Comacchio machines, the MC 4D can be customized according to specific needs.

TECH DATA

Diesel engine Power 55 - 100 kW (74 - 134 HP)
Electric motor 55 - 75 kW
Max Width 850 - 1.150 mm 2.8 - 3.8 ft
Weight  4.600-5.200+2.000-2.800 kg 10,100-11,500+4,400-6,100 lbs
Mast Feed 900 - 2.300 mm 3 - 7.5 ft
Feed Force 3.500 daN 7,868 lbs
Retract Force 3.500 daN 7,868 lbs
Rotary Torque 300 - 1.350 daNm 2,213 - 9,957 lb*ft
Rotary Speed Range 50 - 380 rpm
Clamp Range 45 - 325 mm 1.8 - 12.8 in
