MC 15

Versatility and Power

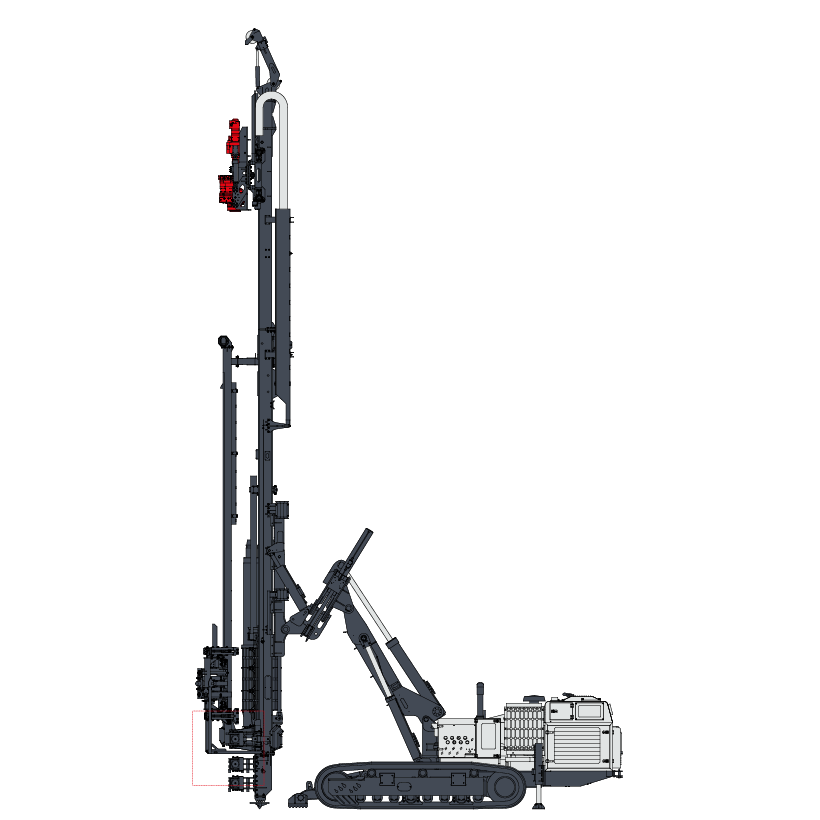

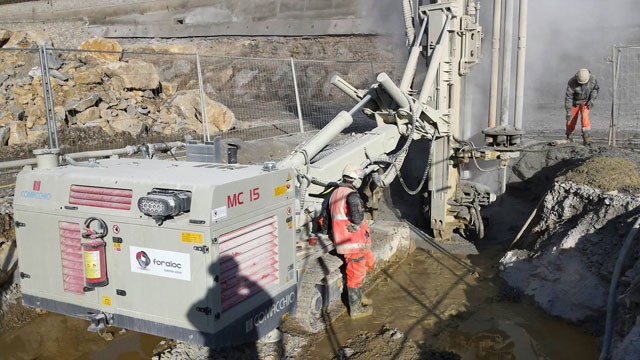

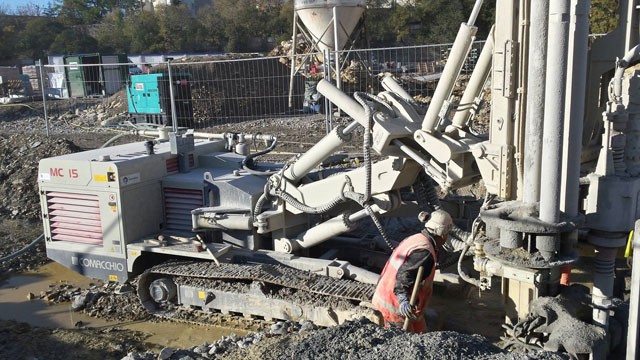

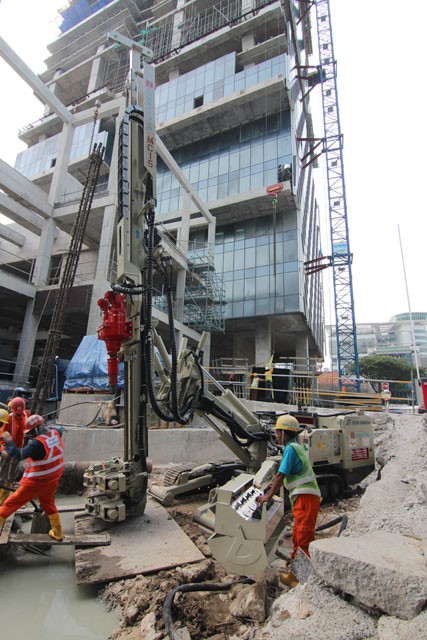

The MC 15 is a compact high-performance drilling rig designed for civil engineering works such as micropiles, anchors, jet grouting and consolidations in general. A distinctive feature of the MC 15 is the variety of movements and inclinations that it can perform thanks to its patented mast articulation, allowing it to be used even in confined or low overhead spaces. Equipped with advanced modular hydraulic circuits, the MC 15 can accommodate a wide range of rotary heads, hydraulic drifters, double head systems, water and mud pumps, winches and rod carousels and is suitable for rotary and rotary-percussive drilling. This machine can be equipped with hydraulic proportional servo-assisted controls or with radio control. Like all Comacchio rigs, the MC 15 can be customized according to specific needs.

TECH DATA

Engine Power 119 - 140 kW (160 - 188 HP)
Max Width 2.300 mm 7' 6''
Weight 14,5 - 16,5 ton
Mast Feed 4.000 - 7.000 mm 13' 2'' - 22' 11''
Feed Force 8.000 daN 17,985 lbs
Retract Force 8.000 daN 17,985 lbs
Rotary Torque 1.300 - 2.900 daNm 9,588 - 21,389 lb*ft
Rotary Speed Range 100 - 350 rpm
Clamp Range 45 - 530 mm 1'' 3/4 - 20'' 7/8
