MC 20

Variety of movements

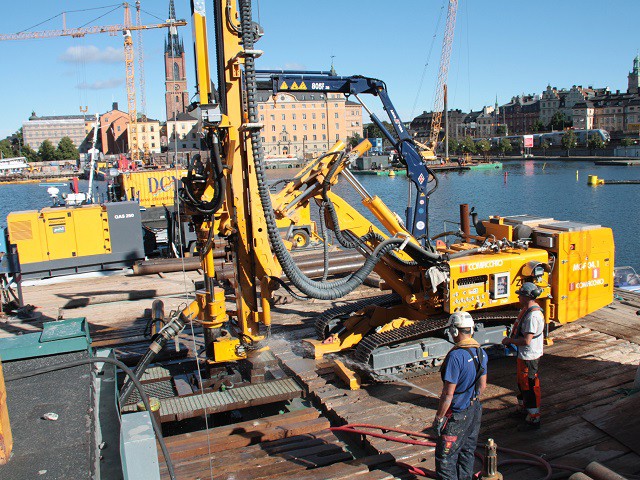

The MC 20 is a hydraulic drilling rig designed for civil engineering works such as micropiles, anchors and consolidations in general. Due to its patented mast articulation, a distinctive feature of the MC 20 is the variety of movements and inclinations that it can perform. Combine this with the rig’s high performance and reliability, it has the ability to tackle even the toughest working conditions. Equipped with advanced modular hydraulic circuits, the MC 20 can accommodate a wide range of rotary heads, hydraulic hammers and double head systems (rotary-rotary and rotary-drifter). The MC 20 can be equipped with hydraulic proportional servo-assisted controls or with the innovative Comacchio radio control system, which will manage all machine functions. Like all Comacchio rigs, the MC 20 can be customized according to specific needs.


Engine Power 209 kW (280 HP)
Max Width 2.500 mm 8.2 ft
Weight 19.500 - 21.500 kg 42,900 - 47,400 lbs
Mast Feed 5.000 - 7.000 mm 16.4 - 23 ft
Feed Force 10.000 daN 22,480 lbs
Retract Force 10.000 daN 22,480 lbs
Rotary Torque 1.500 - 3.100 daNm 11,064 - 22,864 lb*ft
Rotary Speed Range 68 - 153 rpm
Clamp Range 45 - 365 mm 1.8 - 14.4 in
