Innovative hydraulic rod & casing carousel

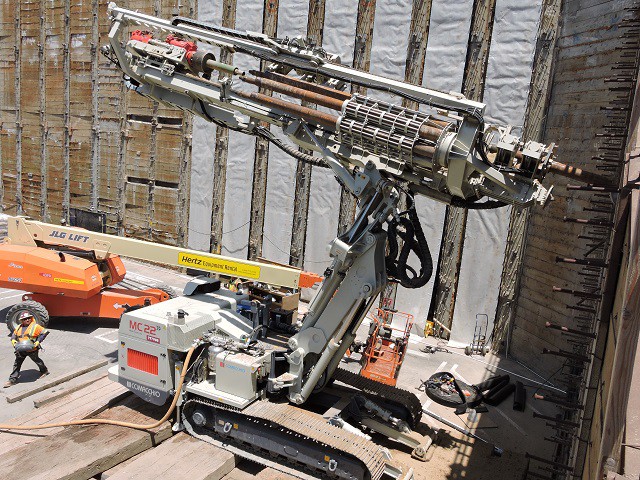

The MC 22A is the new MC 22 drill rig version featuring the innovative hydraulic rod & casing carousel. The machine is completely remote controlled, thanks to the unique Comacchio radio control system, which allows you to manage not only the tramming, drilling and machine set-up functions, but also to operate the hydraulic rod & casing carousel. The carousel is suitable for different rod and casing dimensions up to a maximum of 8 rods and 7 casings. The MC 22A is used mainly for anchor drilling and consolidations in general. Available with a wide selection of rotary heads, hydraulic hammers, double head systems, water and mud pumps, the MC 22 A is suitable for any type of rotary and rotary-percussive drilling.
Like all Comacchio machines, the MC 22A can be customized according to specific needs.
|Engine Power||147 - 168 kW (197 - 225 HP)|
|Max Width||2.500 mm||8.2 ft|
|Weight||24.000 - 25.000 kg||52,900 - 55,100 lbs|
|Mast Feed||5.800 - 5.900 mm||19.0 - 19.4 ft|
|Feed Force||8.000 daN||17,984 lbs|
|Retract Force||8.000 daN||17,984 lbs|
|Rotary Torque||1.300 - 3.100 daNm||9,588 - 22,864 lb*ft|
|Rotary Speed Range||48 - 350 rpm|
|Clamp Range||45 - 365 mm||1.8 - 14.4 in|
