MC 2

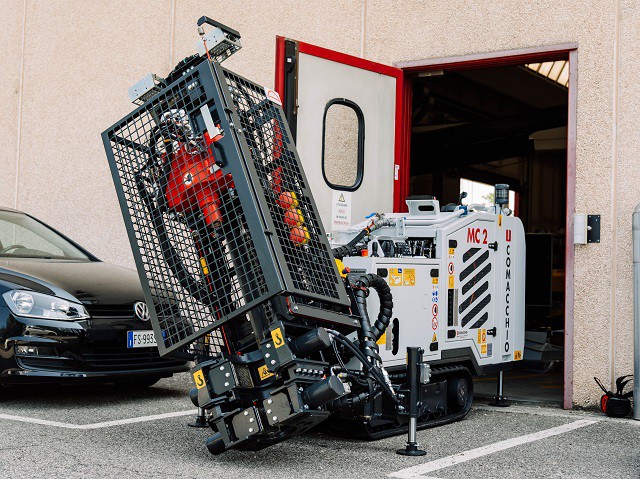

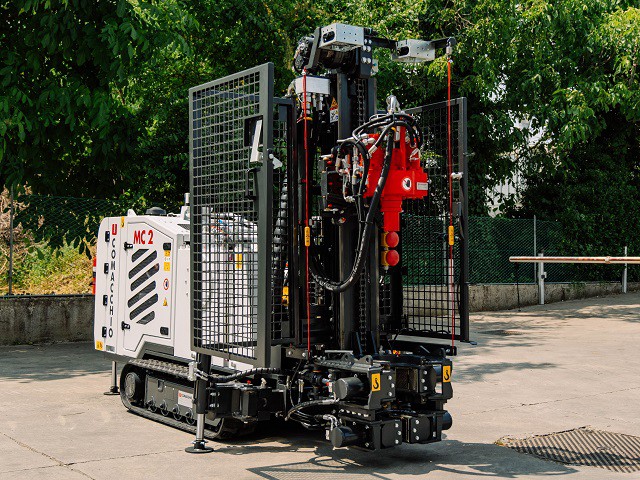

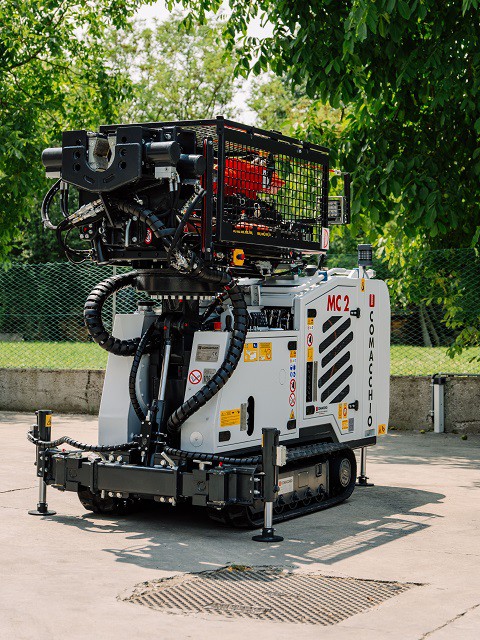

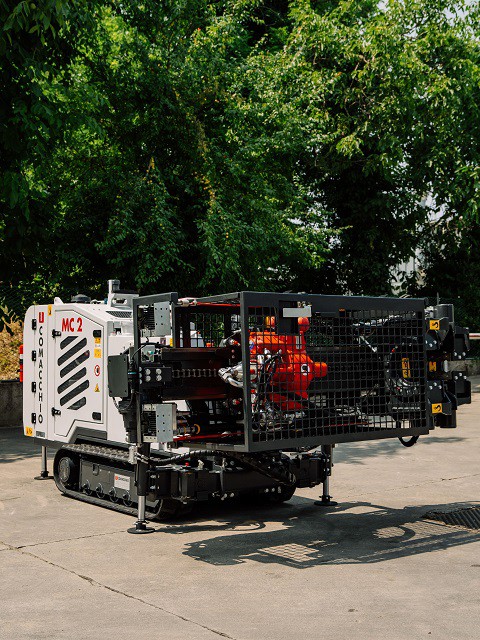

The MC 2 is a compact drilling rig designed to effectively tackle the challenges of ground improvement and underpinning work, even in extremely confined spaces. With ultra-compact dimensions (700 x 3,000 x 2,155 mm), a lightweight structure, and an extendable rubber track undercarriage, the MC 2 is easily adaptable to confined and hard-to-reach spaces and ensures excellent maneuverability. The rig can be equipped with rotary head or hydraulic hammer, depending on the drilling task. The MC 2 features an advanced control system that optimizes performance, enables remote diagnostics, and supports connectivity.

TECH DATA

Diesel engine Power 33 kW (44 HP)
Electric motor 30 kW
Max Width 735 - 1.000 mm 2' 5'' - 3' 3''
Weight 2,5 - 3 ton
Mast Feed 1.000 - 2.250 mm 3' 3'' - 7' 5'' ft-in
Feed Force 2.500 daN 5,620 lbs
Retract Force 2.500 daN 5,620 lbs
Rotary Torque 225 - 430 daNm 1,660 - 3,172 lb*ft
Rotary Speed Range 80 - 810 rpm
Clamp Range 45 - 160 mm 1'' 3/4 - 6'' 5/16 in
